| Model | WAC6553D-E |
|---|---|

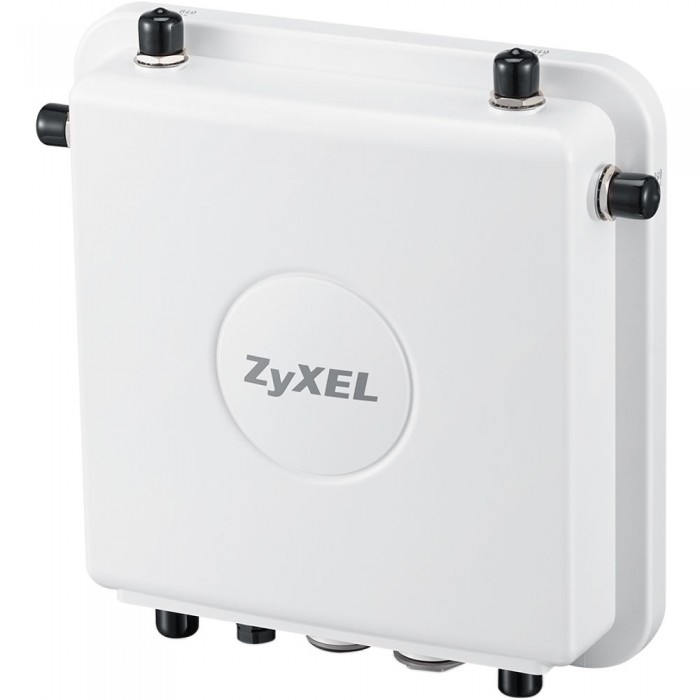

| Product Name | 802.11ac Dual Radio External Antenna 3×3 Outdoor Access Point |
| Main Design | |
| Wireless frequency | 2.4 and 5 GHz |
| Radio | 2 |
| RF Specifications | |
| Frequency band | 2.4 GHz (IEEE 802.11 b/g/n)
5 GHz (IEEE 802.11 a/n/ac)
|
| 802.11n/ac premium features |
|
| Number of antenna | 6 N-type connectors |
| Antenna gain | – |
| Support data rate |
|
| Receive sensitivity | Min. Rx sensitivity up to -102 dBm |
| Typical Transmit Output Power (Conducted) | |
| FCC 11b/g | 29 |
| FCC 11g/n | 29 |
| FCC 11a | 29 |
| FCC 11n/a (ac) | 29 |
| EU 11b/g | 15 |
| EU 11g/n | 15 |
| EU 11a | 23 |
| EU 11n/a (ac) | 23 |
| Interfaces | |
| Number of 10/100/1000M LAN | 1 |
| Console port | RJ-45 serial |
| PoE | Yes |
| PoE power draw | 25 W |
| WLAN Features | |
| WLAN maximum throughput | Up to 900 Mbps |
| Mesh AP (By license)*1 | Yes |
| Mesh AP for multiple SSID with VLAN (through tunnel mode)*1 | Yes |
| Wireless Security | |
| WEP | Yes |
| WPA/WPA2-PSK | Yes |
| WPA/WPA2-Enterprise | Yes |
| WMM (Wi-Fi certified) | Yes |
| EAP types | EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST, EAP-AKA and EAP-SIM |
| IEEE 802.1X | Yes |
| Number of SSID | 16 |
| Web authentication*1 | Yes |
| MAC filtering | Yes |
| Layer-2 isolation | Yes |
| RADIUS authentication | Yes |
| Microsoft AD authentication*1 | Yes |
| LDAP authentication*1 | Yes |
| MAC authentication*1 | Yes |
| Rogue AP detection*1 | Yes |
| Rogue AP containment*1 | Yes |
| Network | |
| IPv6 host | Yes |
| VLANs | Yes |
| DHCP client | Yes |
| QoS (PG) | |
| WMM | Yes |
| WMM power save | Yes |
| DiffServ marking | Yes |
| Management | |
| ZON utility |
|
| Smart connect |
|
| Zyxel AP configurator |
|
| Zyxel wireless optimizer |
|
| Standalone AP mode | Yes |
| Managed AP mode | Yes |
| CLI | Yes |
| Web UI | Yes |
| SNMP | v1/2c/3 |
| Others | |
| Plenum rating | Yes |
| Kensington lock support | Yes |
| Input power | PoE: 802.3at compliant |
| MTBF (hr) | 562,413 |
| Standard Compliance | |
| Ethernet |
|
| PoE | IEEE 802.3at |
| WLAN |
|
| Certifications | |
| Radio | FCC Part 15C, FCC Part 15E, ETSI EN 300 328, EN 301 893, LP0002 |
| EMC | FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438 |
| Safety | EN 60950-1, IEC 60950-1, BSMI CNS14336-1 |
| Physical Specifications | |
| Item Dimensions (WxDxH)(mm/in.) | 255 x 256 x 62/ 10.04 x 10.08 x 2.44 |
| Item Weight (g/lb.) | 1708/3.77 |
| Packing Dimensions (WxDxH)(mm/in.) | 393 x 158 x 430/ 15.47 x 6.22 x 16.93 |
| Packing Weight (g/lb.) | 3904/8.63 |
| Included accessories |
|
| Environmental Specifications | |
| Weather Protection | IP66 (Embedded heater for harsh weather) |
| Operating temperature | -40°C to 60°C/-40°F to 140°F |
| Operating humidity | 10% to 95% (non-condensing) |
| Storage temperature | -40°C to 70°C/ -40°F to 158°F |
| Storage humidity | 10% to 95% (non-condensing) |
