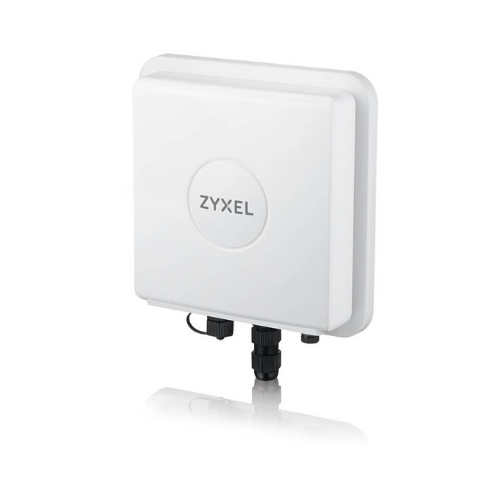

ZyXEL ZXL-WAC6552D-S Warranty Limited

หมวดหมู่: Wireless, ZYXEL

รายละเอียด
บทวิจารณ์ (0)

Specifications:

Models	WAC6552D-S 802.11ac Dual-Radio Unified Pro Outdoor Access Point	WAC6553D-E 802.11ac Dual Radio External Antenna 3×3 Outdoor Access Point
Wireless
Standard	IEEE802.11 ac/n/g/b/a	IEEE802.11 ac/n/g/b/a
MIMO	Yes	Yes
Wireless speed	2.4GHz: 300Mbps 5GHz: 866Mbps	2.4GHz: 450Mbps 5GHz: 1300Mbps
Frequency band	2.4 GHz (IEEE 802.11 b/g/n) USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz 5 GHz (IEEE 802.11 a/n/ac) USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz Europe (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz	2.4 GHz (IEEE 802.11 b/g/n) USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz 5 GHz (IEEE 802.11 a/n/ac) USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz Europe (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth	20-, 40- and 80-MHz	20-, 40- and 80-MHz
Conducted typical transmit output power	28/28dBm	29/29dBm
RF Design
Antenna type	2×2 MIMO Smart antenna	6 N-type connectors*²
Antenna gain	2.4GHz: 5 dBi 5GHz: 10 dBi	–
Minimum Receive sensitivity	Min. Rx sensitivity up to -101 dBm	Min. Rx sensitivity up to -102 dBm
WLAN feature
Band Steering	Yes	Yes
WDS	Yes	Yes
Mesh AP (By License)	Yes	Yes
Mesh AP for multiple SSID with VLAN	Yes	Yes
Fast roaming	Pre-authentication, PMK caching and 802.11r/k/v	Pre-authentication, PMK caching and 802.11r/k/v
Security
Encryption	WEP/ WPA/WPA2-PSK	WEP/ WPA/WPA2-PSK
Authentication	WPA/WPA2-Enterprise/ EAP/ IEEE 802.1X/ RADIUS authentication	WPA/WPA2-Enterprise/ EAP/ IEEE 802.1X/ RADIUS authentication
Access management	L2-isolation/ MAC filtering/ Rogue AP detection	L2-isolation/ MAC filtering/ Rogue AP detection
networking
IPv6	Yes	Yes
VLANs	Yes	Yes
WMM	Yes	Yes
U-APSD	Yes	Yes
DiffServ marking	Yes	Yes
Management
Operating mode	Standalone/ controller-managed	Standalone/ controller-managed
ZON Utility	Discovery of Zyxel switches, APs and gateways Centralized and batch configurations IP configuration IP renew Device reboot Device locating Web GUI access Firmware upgrade Password configuration One-click quick association with Zyxel AP Configurator (ZAC)
ZAC	Batch AP configuration Batch AP firmware upgrade Batch AP profile backup
Zyxel Wireless Optimizer	Wi-Fi AP planning Wi-Fi coverage detection Wireless health management
Web UI/ CLI	Yes	Yes
SNMP	Yes	Yes
Physical Specifications
Item	Dimensions (WxDxH)(mm/in.) 255 x 256 x 66/ 10.04 x 10.08 x 2.60 Weight (kg/lb.) 1590/3.51	Dimensions (WxDxH)(mm/in.) 255 x 256 x 62/ 10.04 x 10.08 x 2.44 Weight (kg/lb.) 1708/3.77
Packing	Dimensions (WxDxH)(mm/in.) 455 x 341 x 131/ 17.91 x 13.43 x 5.16 Weight (kg/lb.) 3500/7.72	Dimensions (WxDxH)(mm/in.) 393 x 158 x 430/ 15.47 x 6.22 x 16.93 Weight (kg/lb.) 3904/8.63
Included accessories	Pole mounting kits	Pole/wall mounting kits PoE injector (optional) Power cord (optional)
MTBF(hr)	775,977	562,413
Ethernet port	1 x 10/100/1000M LAN	1 x 10/100/1000M LAN)
Power	PoE (802.3at): power draw 15.12 W	PoE (802.3at): power draw 25 W
Environmental Specifications
Weather protection	IP67	IP66 (Embedded heater for harsh weather)
Operating	Temperature -20°C to 60°C/ -4°F to 140°F Humidity 10% to 90% (non-condensing)	Temperature -40°C to 60°C/ -40°F to 140°F Humidity 10% to 90% (non-condensing)
Storage	Temperature -40°C to 70°C/ -40°F to 158°F Humidity 10% to 90% (non-condensing)	Temperature -40°C to 70°C/ -40°F to 158°F Humidity 10% to 90% (non-condensing)
Certifications
Radio	FCC Part 15C, FCC Part 15E, ETSI EN 300 328, EN 301 893, LP0002	FCC Part 15C, FCC Part 15E, ETSI EN 300 328, EN 301 893, LP0002
EMC	FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438	FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438
Safety	EN 60950-1, IEC 60950-1, BSMI CNS14336-1	EN 60950-1, IEC 60950-1, BSMI CNS14336-1
