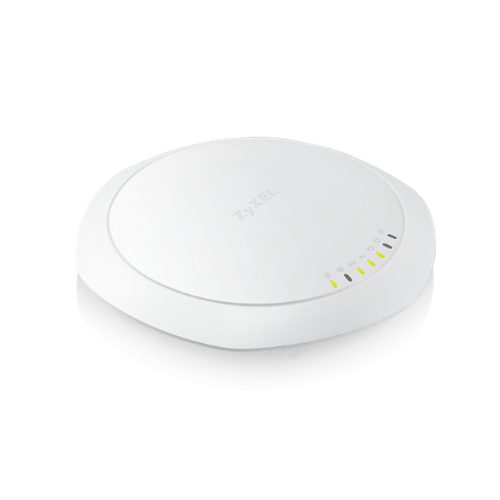

ZyXEL ZXL-WAC6103D-I Warranty Limited

• 802.11a/g:6, 9, 12, 18, 24, 36, 48 and 54 Mbps
• 802.11b: 1,2,5.5 and 11Mbps
• 802.11n: up to 450 Mbps in MCS23(40 MHz)

• 3×3 Multiple-Input Multiple-Output (MIMO) with three spatial streams
• Maximal Ratio Combining (MRC)
• 20-, 40- and 80-MHz channels
• Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
• Cyclic Delay diversity (CSD) support
• Maximum Likelihood Demodulation (MLD) support
• Low Density Parity Check (LDPC) support

Dual-optimized internal antenna

• Ceiling: 2.4 GHz 3 dBi; 5 GHz 4 dBi
• Wall: 2.4 GHz 4 dBi; 5 GHz 5 dBi

• Min. Rx sensitivity up to -102 dBm

• Up to 900 Mbps

• Supported WEP, WPA/WPA2-Enterprise, WMM (Wi-Fi certified) ,multiple EAP types, IEEE802.1X, MAC filtering, Layer-2 isolation , RADIUS authentication and more encryption supported when working with ZyXEL NXC controller series

• Support IPv6
• VLANs
• DHCP Client

• WMM
• WMM power save
• DiffServ marking

Discovery of ZyXEL switches, APs and gateways in local area network Centralized and batch configurations

• IP configuration
• IP renew
• Device factory reset
• Device reboot
• Device locating
• Web GUI access
• Firmware upgrad
• Password configuration
• One-click quick association with ZyXEL AP Configurator (ZAC)

• Discover neighboring devices
• One-click remote management access to the neighboring ZyXEL devices

• Batch AP configuration
• Batch AP firmware upgrade
• Batch AP profile backup

• Wi-Fi AP planning
• Wi-Fi coverage detection
• Wireless health management
