ZyXEL ZXL-SFP-LX-10-D Warranty Limited

รายละเอียด

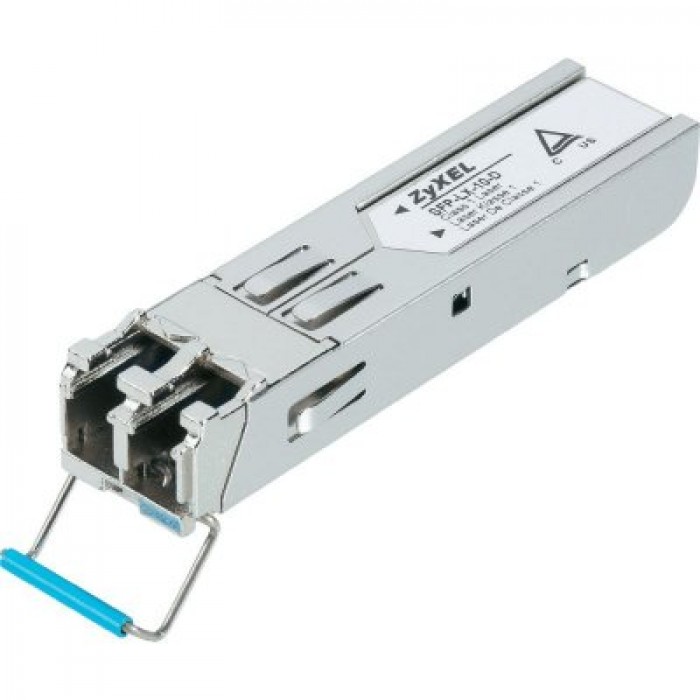

Zyxel SFP-LX-10 1000Base-LX SFP Transceiver

1000LX SINGLE MODE FIBER UP TO 10KM. DUPLEX LC CONNECTOR

Gigabit Speed and Flexibility ZyXEL’s Small Form-factor Pluggable (SFP) transceiver family provides performance and flexibility with full duplex Gigabit speeds and hot-pluggable into Gigabit Ethernet port.

Small Size and High Port Density ZyXEL’s SFP transceiver’s compact design provides high port density. For example, ZyXEL GS-3012F switch can connect up to 12 fiber links – all at an affordable price.

Industry Standards-based ComplianceZyXEL’s SFP transceiver family is compliant with IEEE 802.3z and SFP MSA allowing easy interoperability with all standard compliance devices from different vendors.

Specification

• Gigabit Speed and Flexibility
• Hot Pluggable
• Compact Size and High Port Density
• Industry Standards-based Compliance
• 802.3z , SFP MSA (Multi-Source Agreement) Compliance
• Single +3.3V Power Supply
• Low Power Dissipation

Dimension

• 56 x 13.4 x 12.46 mm

Optical Receiver Sensitivity

• -20 dBm

Wavelength

• 1310nm

Connector

• LC

Transmission Distance vs. Fiber Cable Specification

• 62.5um MMF: 550 m
• 50um MMF: 550 m
• 9/10um SMF: 10 km

Operational Ranges

• Supply Voltage: 3.15~3.45 V
• Max Current: 300mA

Safety Certification

• Class 1 Laser
• 21 CFR 1040.10 and 1040.11 Compliant
• CSA
• TUV

Operating Environment Information

• Operating Temperature: 0°C  ~ 70°C
• Storage Temperature: -40°C  ~ 85°C
• Relative Humidity: 5% – 95%
