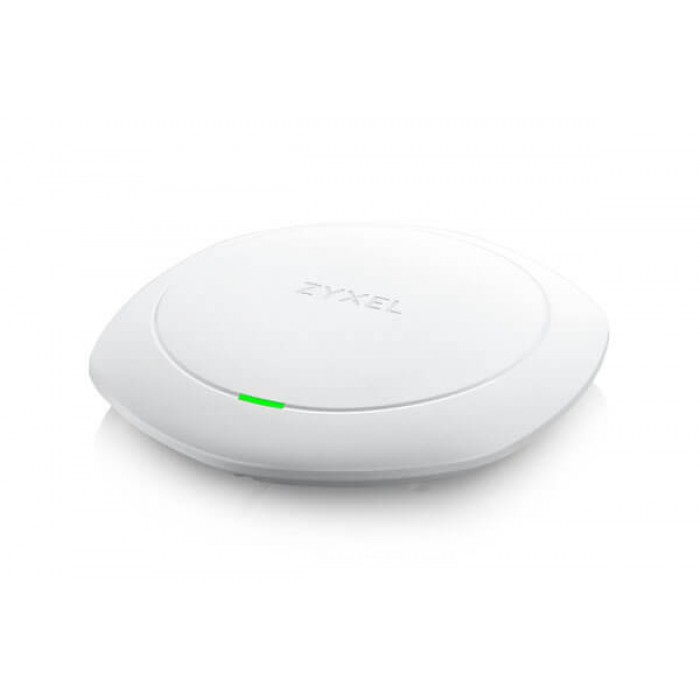

ZyXEL ZXL-NWA5123-AC HD Warranty Limited

หมวดหมู่: Wireless, ZYXEL

รายละเอียด
บทวิจารณ์ (0)

NWA5123-AC HD Specifications
RF Specifications
802.11n/ac premium features		802.11n: 2×2 MIMO with two spatial stream (SU-MIMO) 802.11ac: 3×3 MIMO with three spatial stream (SU-, or MU-MIMO) 802.11ac beamforming (transmit beamforming) Maximal ratio combining (MRC) Low End Sensitivity Improvements (LESI) Time Domain Channel Smoothing 20-, 40- and 80-MHz channels PHY data rates total up to 300 Mbps (11n) + 1300 Mbps (11ac) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) Cyclic Delay diversity (CSD) support Maximum Likelihood Demodulation (MLD) support Low Density Parity Check (LDPC) support
Typical transmit output power (dBm)1		US (FCC) 2.4 GHz: 25 dBm US (FCC) 5 G GHz: 28 dBm EU (ETSI) 2.4 GHz: 20 dBm EU (ETSI) 5 G GHz: 26 dBm
Antenna gain		2.4 GHz: 3 dBi; 2×2 MIMO 5 GHz: 3 dBi 3×3 MIMO
Support data rate		802.11a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps 802.11n: up to 300 Mbps in MCS15 (40MHz; 2 Spatial Streams; GI=400ns) 802.11ac:up to 1300 Mbps in MCS9 (80MHz; 3 Spatial Streams; GI=400ns)
Receive sensitivity		Min. Rx sensitivity up to -103 dBm
Interfaces
Number of 10/100/1000M LAN		2 x switch ports
Console port		4-Pin serial
Input power requirements		Direct DC power or Power over Ethernet (PoE)2
PoE		802.3at (full mode) 802.3af (Restrict 2.4G & 5G radio to one transmit stream only.)
PoE power draw		15.5 W (802.3at PoE)
WLAN
WLAN maximum throughput		Up to 1600 Mbps
Fast roaming		Pre-authentication and PMK caching
Wireless Security		WPA/WPA2-PSK WPA/WPA2-Enterprise WLAN access control list EAP type IEEE 802.1X MAC filtering Web authentication3 Layer-2 isolation RADIUS authentication Microsoft AD authentication3 LDAP authentication3 MAC authentication3 Rogue AP detection
Number of SSID		16
QoS		WMM WMM power save U-APSD DiffServ marking
Network
IPv6 support		Yes
VLANs		Yes
DHCP client		Yes
Management
ZON Utility4		Discovery of Zyxel switches, APs and gateways Centralized and batch configurations IP configuration IP renew Device factory reset Device reboot Device locating Web GUI access Firmware upgrade Password configuration One-click quick association with Zyxel AP Configurator (ZAC)
Smart Connect		Neighbor device discovery One-click remote management access to the neighboring Zyxel devices
Zyxel AP Configurator5		Batch AP configuration Batch AP firmware upgrade Batch AP profile backup
Zyxel Wireless Optimizer6		Wi-Fi AP planning Wi-Fi coverage detection Wireless health management
Standalone AP mode		Yes
Managed AP mode		Yes
CLI		Yes
SNMP		v2c/v3
Standard Compliance
Ethernet		IEEE 802.3 IEEE 802.3u IEEE 802.11ab IEEE 802.3au IEEE 802.3az IEEE 802.3af/at
PoE		IEEE 802.3af/at
WLAN		802.11b: DBPSK, DQPSK, CCK 802.11g: BPSK, QPSK, 16-QAM, 64-QAM 802.11a: BPSK, QPSK, 16-QAM, 64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 64-QAM, 256-QAM
Certifications
Radio		FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002 EN 60601-1-2
EMC		FCC Part 15B EN 301 489-1 EN 301 489-17 EN55032 EN55024 EN61000-3-2/-3 BSMI CNS13438
Safety		EN 60950-1 IEC 60950-1 BSMI CNS14336-1
Physical Specifications and others
Item	Dimensions (mm/in.)	211 x 223 x 39 / 8.31 x 8.78 x 1.54
Item	Weight (kg/lb.)	750/1.653
Packing	Dimensions (WxDxH)	251 x 247 x 55 / 9.88 x 9.72 x 2.17
Packing	Weight (kg/lb.)	990/2.182
Included accessories		Wall/ceiling mount plate
Plenum rating		Yes
Kensington lock support		Yes
Power supply	Input	AC 100-240V, 50~60Hz
Power supply	Output	DC +12V 2A (Sold separately)
MTBF (hr)		4,134,738
Environmental Specifications
Operating	Temperature	-20°C to 60°C / -4°F to 140°F
Operating	Humidity	10% to 90% (Non-condensing)
Storage	Temperature	-40°C to 70°C / -40°F to 158°F
Storage	Humidity	10% to 90% (non-condensing)
