| Model | NVR302-09E-B | NVR302-16E-B |
| Video/Audio Input | ||
| IP Video Input | 9-ch | 16-ch |
| Two-way Audio Input | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 90Mbps | 160Mbps |
| Outgoing Bandwidth | 180Mbps | 320Mbps |
| Remote Users | 128 | |
| Video/Audio Output | ||
| HDMI/VGA Output | HDMI:
4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz |
|
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 9-ch | 16-ch |
| Decoding | ||
| Compression | H.265/H.264 | |
| Live View/ Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | 3 x 12MP@25, 4 x 4K@30, 9 x 4MP@25, 16 x 1080p@30 | |
| Hard Disk | ||
| SATA | 2 SATA interfaces | |
| Capacity | up to 8TB for each disk | |
| External Interface | ||
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces | |
| Serial Interface | 1 x RS485 | |
| USB Interface | Front panel: 1 x USB2.0
Rear panel: 1 x USB2.0, 1 x USB3.0 |
|
| Alarm In | 8-ch | |
| Alarm Out | 2-ch | |
| General | ||
| Power Supply | 12V DC | |
| Consumption
( without HDD ) |
≤ 20 W | |
| Working Temperature | -10°C ~ + 55°C ( +14°F ~ +131°F ) | |
| Working Humidity | 10% ~ 90% | |
| Dimensions | 46mm × 315mm × 380mm ( 1.8″ × 12.4″ × 15.0″ ) | |
| Weight ( without HDD ) | ≤ 2.48 Kg (5.47 lb ) | |

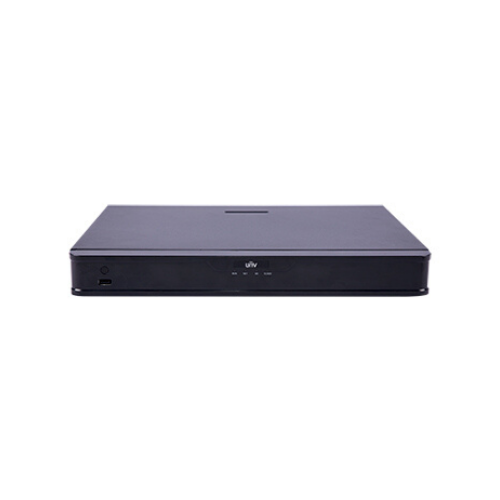

Uniview NVR302-09E-B 9 Channel 2 HDD Warranty 2 year
