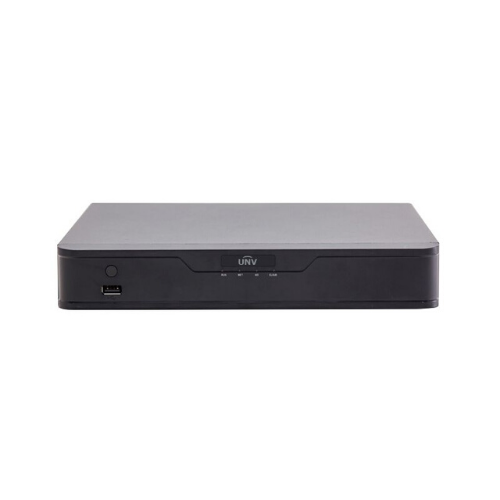

Uniview NVR301-08B-P8 8-channel PoE 4K NVR Warranty 2 year

NVR301-04-P4

NVR301-08-P8

NVR301-16-P8

 Video and Audio

IP Video Input

4-ch

8-ch

16-ch

Two-way audio Input

1-ch, RCA

 Network

Incoming bandwidth

40Mbps

60Mbps

60Mbps

Outgoing bandwidth

64Mbps

64Mbps

80Mbps

Remote connection

128

 Video/Audio Output

HDMI/VGA Output

HDMI:

4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz

VGA:

1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz

Audio Output

1-ch, RCA

Recording Resolution

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Synchronous Playback

4-ch

8-ch

16-ch

 Decoding

Compression

H.265/H.264

Live view/ Playback

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

1 x 4K@30, 3 x 4MP@20, 4 x 1080p@25, 8 x 720p@25, 16 x D1

 Hard Disk

SATA

1 SATA interface

Capacity

up to 6TB for each disk

 External Interface

Network Interface

1 RJ-45 10M/100M self-adaptive Ethernet Interface

Network Function

HTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,IP Filter, PPPOE, DDNS, FTP, IP Server, P2P

USB Interface

Rear panel：2 x USB2.0,Front panel：1XUSB2.0

Alarm In

4-ch

Alarm Out

1-ch

 PoE

Interface

4 independent 100 Mbps PoEnetwork interfaces

8 independent 100 Mbps PoEnetwork interfaces

Supported Standard

IEEE 802.3at, IEEE 802.3af

 General

Power Supply

48V DC

52V DC

Consumption ( without HDD )

≤ 5 W

PoE

Max 30W for single port

Max 54W in total ( 13.5W for each )

Max 30W for single port

Max 108W in total ( 13.5W for each )

Working Temperature

-10°C ~ + 55°C ( +14°F ~ +131°F )

Working Humidity

10% ~ 90%

Dimensions

44 × 260 × 240mm ( 1.7″ × 10.2″ × 9.4″ )

Weight ( without HDD )

≤ 1.12 Kg ( 2.47 lb )
