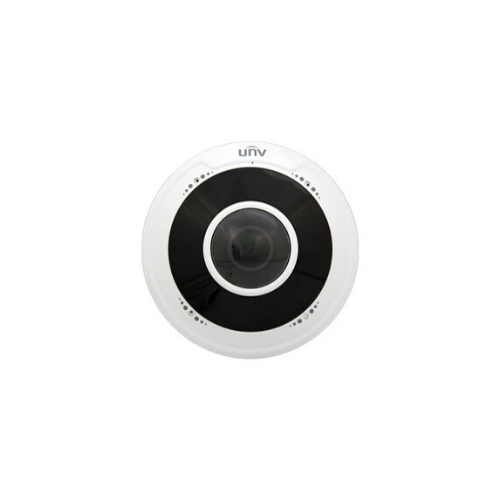

| IPC814SR-DVPF16 | |||||
| Camera | |||||
| Image sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS | ||||
| Lens | 1.6mm@F1.6 | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 1.6 | 36 | 14.4 | 7.2 | 3.7 | |
| Angle of View | 180° | ||||
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | ||||
| Minimum Illumination | Colour: 0.01Lux (F1.6, AGC ON) 0Lux with IR |
||||
| Day / Night | IR-cut filter for day & night function | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >55dB | ||||
| IR Range | UP to 10m (33ft) | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Compression | Ultra265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate | Main Stream : 4MP (2560*1440), Max 25fps; Sub Stream: 1080P (1920*1080), Max 25fps; Third Stream: D1 (720*576), Max 25fps |
||||
| BLC | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| ROI | Up to 8 areas | ||||
| Privacy Mask | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Live View Display | |||||
| Mount Type | Support table, wall, and ceiling | ||||
| Interface | |||||
| Audio I/O | Audio interface | ||||
| Input: impedance 35kΩ; amplitude 2V [p-p] | |||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||
| 3 built-in omnidirectional microphone | |||||
| Alarm I/O | 1/1 | ||||
| Built-in Mic | Supported | ||||
| Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] | ||||
| Network | 1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet | ||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 11W | |||||
| Dimensions (Ø x H) | Φ125 x 43.7mm (Φ4.9” x 1.7”) | ||||
| Weight | 0.39kg (0.86lb) | ||||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH | ||||
| Ingress Protection | IP66 | ||||
| Vandal Resistant | IK10 | ||||
| Reset Button | Supported | ||||
