| IPC2222ER5-DUPF40-C | IPC2222ER5-DUPF60-C | |||||||
| Camera | ||||||||
| Sensor | 1/2.8″, 2.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 4.0mm@F1.2 | 6.0mm@F1.2 | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 4.0 | 62.1 | 24.8 | 12.4 | 6.2 | ||||
| 6.0 | 93.1 | 37.2 | 18.6 | 9.3 | ||||
| Angle of View (H) | 78.7° | 53.3° | ||||||
| Angle of View (V) | 42.8° | 29.3° | ||||||
| Angle of View (O) | 96.8° | 65.5° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Minimum Illumination | Colour: 0.0005Lux (F1.2, AGC ON) 0Lux with IR on |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| S/N | >52dB | |||||||
| IR Range | Up to 50m (164ft) IR range | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120dB | |||||||
| Video | ||||||||
| Video Compression | Ultra265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
|||||||
| 9:16 Corridor Mode | Supported | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 8 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 256GB | |||||||
| Network Storage | ANR | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||
| Interface | ||||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
| Power consumption: Max 9W | ||||||||
| Dimensions (L × W × H) | 253.4 × 86 × 71.7mm (9.98” × 3.4” × 2.8”) | |||||||
| Weight | 1.0kg (2.2lb) | |||||||
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Ingress Protection | IP67 | |||||||
| Vandal Resistant | IK10 | |||||||

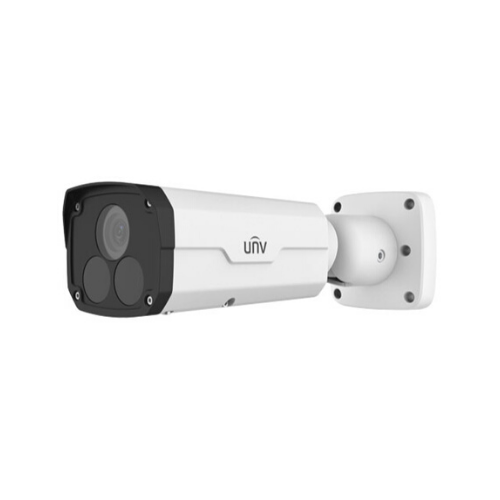

Uniview IPC2222ER5-DUPF60-C 2MP Super Starlight Fixed Bullet Network Camera Warranty 2 year
