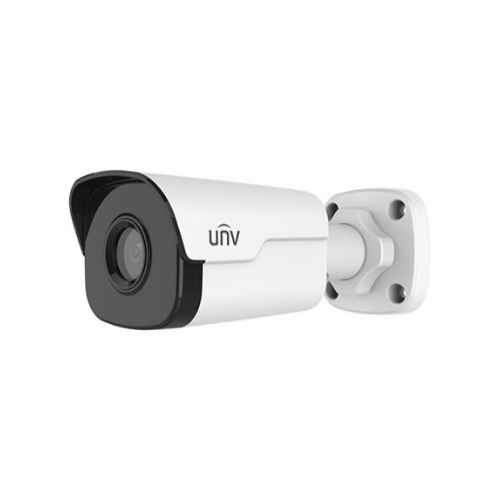

Uniview IPC2122SR3-UPF40-C 2MP Starlight Network IR Mini Bullet Camera Warranty 2 year

หมวดหมู่: IP Camera, Uniview

รายละเอียด
บทวิจารณ์ (0)

	IPC2122SR3-UPF40-C				IPC2122SR3-UPF60-C
Camera
Sensor	1/2.8″, 2.0 megapixel, progressive scan, CMOS
Lens	4.0mm@F1.6				6.0mm@F1.6
DORI Distance	Lens (mm)	Detect (m)		Observe (m)		Recognize (m)		Identify (m)
	4	64.3		25.7		12.9		6.4
	6	96.4		38.6		19.3		9.6
Angle of view (H)	78.7°				53.3°
Angle of View (V)	42.8°				29.3°
Angle of View (O)	96.8°				65.1°
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 90°				Rotate: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.001Lux (F1.6, AGC ON) 0Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98ft) IR range
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream: 2MP (19201080), Max 30fps; Sub Stream: 2MP (19201080), Max 30fps; Third Stream: D1 (720*576), Max 30fps
9:16 Corridor Mode	Supported
HLC	Supported
BLC	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration	ONVIF (Profile S, Profile T), API
Interface
Network	1 RJ45 10M/100M Base-TX Ethernet
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 6W
Dimensions (L × W × H)	157.3 × 62.4 × 63mm (6.2” × 2.5” × 2.5”)
Weight	0.45kg (0.99lb)
Working Environment	-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP67
Reset Button	Supported
