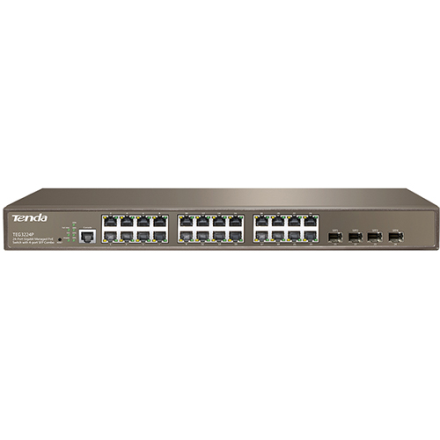

Tenda TND-TEG3224P 24 port 10/100/1000 Manage PoE Switch Warranty 5 Year

IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1D,IEEE 802.3af,IEEE 802.3at

Layer 2 switch

All ports support linear forward
Packet forwarding speed: 35.7Mpps

MTBF

100,000hours

Store & Forward

Yes

Switch Fabric

56Gbit/s

MAC Address Table

8K MAC
Support set port MAC address learning maximum number

Fixed Port

24 10/100/1000Base-T ports (Data/PoE)
4 10/100/1000 Base-X SFP ports ( Combo)

Optional Module

SFP optical fiber module with single port

Power supply module

Supply 24 RJ-45 802.3af(15.4W)/12 RJ-45 802.3at(30W)
Power Pin Assignment: 1/2(+),3/6(-)

Input Voltage

AC:176V~264V
50/60Hz

Dimension

440*284*44 (W x D x H mm)

Weight

<5kg

Consumption

Power consumption:<450W
PoE Power Budget:370 Watts

Operation Temperature

0~45 Degree C

Operating Humidity

10%~95%(Non-condensing)

Port Trunking

Support LACP
Support manual polymerization
12 groups of port trunk support,up to 16 GE port per trunk group

PoE supply management

PoE port setting and power priority supply setting
PoE over temperature protection
Smart graphical management and detection of PD equipment, (priority, port state, power allocation, PD equipment state), intelligent management power of PD equipment

Layer 2 ring network protocol

Conform to STP/RSTP/MSTP
Support equipment to prevent the loop

VLAN

Support port-based VLAN(4K)?protocol-based VLAN Compliant with Voice VLAN?VLAN Mapping?VLAN VPN(QinQ),flexible QinQ

DHCP

DHCP Snooping?DHCP Relay/Client/Server
DHCP Snooping Option82/DHCP Relay Option82

Multicast

Support IGMP Snooping?multicast VLAN?IGMP V1/V2?PIM-SM/ PIM-DM/MSDP

Mirroring

N:1 port mirror?flow mirror?RSPAN(Remote port mirror)

ACL

Support L2 ~ L4 (Layer 4) packet filter function, supply source of based on MAC address, the destination MAC address, the source IP address, destination IP address, TCP/UDP port number and protocol type, VLAN and illegal frame filtering
Support based on

QoS

Support for the rate at which port to receive a message and send a message to limit the speed
Support message to redirect, the function of the CAR
Support 8 port output queue
Support port queue scheduling (SP,WRR)
Support port queue scheduling (SP,WRR)

Security

User classification management,and password protection
IEEE 802.1 X authentication
Centralized MAC address authentication
Protection of the ARP,IP source address intrusion detection
Support SSH2.0, port isolation

Management

XModem/FTP/TFTP load to upgrade
Support command line interface (CLI), Telnet, the configurations of the Console port
Support the SNMP v1 / v2, v3 and WEB network management
Support RMON (Remote Monitoring) 1,2,3,9 group MIB
Support system logs, hierarchic

Certification

FCC/CE/RoHS
