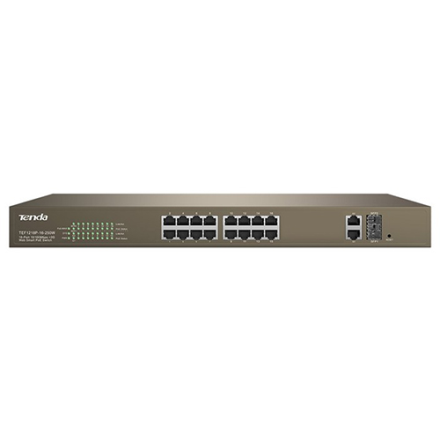

Tenda TND-TEF1218P-250W 16-Port 10/100Mbps+2 Gigabit Web Smart PoE Switch Warranty 5 Year

หมวดหมู่: Manage Fast Ethernet Switch, Tenda

รายละเอียด
บทวิจารณ์ (0)

Product Specification
Overview	TENDA TEF1218P-16-250W L2 Manage PoE Switch 16 Port 100Mbps, 2 Port Gigabit , 2 Port SFP จ่ายไฟ POE 802.3af/at 16 Port จ่ายไฟสูงสุดรวม 250W
Standard&Protocol	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.1W, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at
MTBF	100,000hours
Indicator	Link/Act, PoE Status,System, Power,PoE Max
Interface	Fixed Ports:16 10/100Base-TX ports 2 10/100/1000Base-T ports 2 1000Base-X SFP ports Combo) lightning protection:?6KV
Performance	Store and forward:Yes Exchange capacity:7.2 Gbit/s MAC address entries:4K MAC
Power	Power supply module:Providing 16 ports under IEEE 802.3af(15.4W) or 8 ports under IEEE 802.3at(30W) PoE through pin:1 2 4 5 +,3 6 7 8 – Voltage input range:AC:100-240V~ 50/60Hz
Dimension	440mm284mm44mm (L?W?H)
Weight	?5kg
Power Consumption	<250W PoE consumption up to 230W
Temperature	Perating temperature:0 ?~40 ? Storage temperature:-40 ?~70 ?
Humidity	Operational:10%~95%(noncondensing) Storage:10%~95%(noncondensing)
PoE supply management	Support setup of PoE Support power adjustable by priority Support over temperature protection for PoE module
VLAN	Support VLAN(4K) based on ports Support 802.1QVLAN
Mirroring	Support local mirror image
Link Aggregation	Support LACP, manual link aggregation Support up to 6 link aggregation groups and up to 8 GE ports per group
QoS	Support message transmission for ports and limitation of speed Support SP & WRR
Layer 2 ring network protocol	Support STP/RSTP and looped Network for devices
Certification	FCC/CE/RoHS
