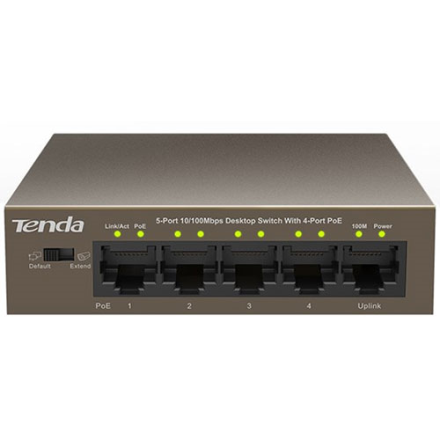

Tenda TND-TEF1105P-4-63W 5 port 10/100 Unmanage Desktop PoE Warranty 5 Year

Specification

Standard&Protocol

– IEEE 802.3?IEEE 802.3u?IEEE 802.3ab?IEEE 802.3af?IEEE 802.3at

Indicator

– 5*Link/Act per device

– 4*PoE per device

– 1*Power per device

Interface

– 4 10/100Base-Tx ports(Data/Power)

– 10/100Base-Tx port(Data)

Port

– Lightning Protection: 6KV

Store & Forward

– Yes

exchange capacity

– 1 Gbps

Packet Forwarding Rate

– 0.744Mpps

MAC Address Table

– 2K

PoE supply management

– Port 1 to Port 4 support IEEE802.3at/af PoE standard

PoE through pin

– 1 2 4 5 +,3 6 7 8 –

Power Input

– AC:100-240V~ 50/60Hz

Dimension

– 100*100*26mm ( W x D x H )

Power Consumption

– in full configuration:<63W

– PoE Max Power Supply:58W

Ports feature

– Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.

– Extend Mode: If the extend mode is enabled, the transmission distance of both power and data will extend up to 250m(10Mbps), this funcation can replace the extender and parts of the Fiber. It will extend the distance of the whole system and save the cost of the project.

Environment

– Operating Temperature: 0℃~40℃ (32℉~104℉)

– Storage Temperature: -40℃~70℃ (-40℉~158℉)

– Operating Humidity: 10%~90% non-condensing

– Storage Humidity: 5%~90% non-condensing
