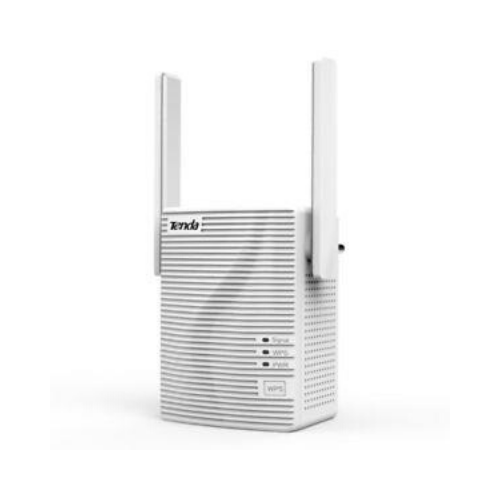

Tenda A18 AC1200 Dual-Band Wifi Repeater/ Range Extender
A18 is an AC1200 dual-band WiFi repeater dedicated for two-storey houses, villas, and multi-room houses with an area over 120 square meters. It offers up to 300 Mbps data rate on 11n band and 867 Mbps data rate on 11ac band. With two external omni-directional antennas, A18 can provide larger WiFi coverage, as well as extreme fast data rate, satisfying applications such as playback of 1080P HD videos, massively multiplayer online games, and high-speed download. With the upgrade Setup Wizard, it only takes you three steps to configure your repeater, which is easy to use. A18 also works better with other brands’ WiFi router available on the market. For whole home WiFi coverage, A18 is your best choice.
Port
1*10/100 Mbps RJ45
Button
Reset, WPS
LED
1 * Signal LED
1 * WPS LED
1 * Power LED
Power Supply
9V 0.8A, built-in
Plug Type
National Standard, US Standard, European Standard, UK Standard, Brazil Standard
Power Consumption
No-load: 2.8W, Full-load: 5.2W
Dimension
80mm * 58mm * 48mm
Standard&Protocol
IEEE 802.11a, IEEE 802.11n, and IEEE 802.11ac wave2 on 5 GHz
IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n on 2.4 GHz
Data Rate
802.11b: 11 Mbps
802.11g: 54 Mbps
802.11n: 300 Mbps
802.11ac: 867 Mbps
Frequency Band
11n: 2.412-2.484 GHz
11ac: 5.15-5.25 GHz
Transmit Power
2.4 GHz: 16dBm
5 GHz: 12dBm
RSSI
2.4 GHz
11b-1M:-97dBm
11g-54M:-76dBm
11n-20M-MCS7:-74dBm
11n-40M-MCS7:-72dBm
5 GHz:
11a-6M:-95dBm
11n-20M-MCS7:-74dBm
11n-40M-MCS7:-72dBm
11ac-80M-MCS9:-63dBm
Antenna
2 * External 2dBi dual-band omni-directional antenna (non-detachable)
Channel
11n: 20/40MHz by default
11ac: 80MHz by default
Operating Mode
Repeater Mode
AP Mode
Wireless Security
Default encryption mode: Mix WPA-PSK/WPA2-PSK
WPA algorithm: TKIP
DHCP Server
Supported
System Tool
Firmware upgrade, Restore factory settings, Login password, and Reboot
Temperature
Operating temperature:0ºC~40ºC
Storage temperature:-40ºC~70℃
Humidity
Operating humidity:(10 – 90)% RH, non-condensing
Storage temperature:5%~90%RH, non-condensing
Package Content
1 * AC1200 Dual Band WiFi Repeater
1 * Quick Installation Guide
