| Hardware Specifications | |
| CPU | Dual core 1.7 GHz |
| L4/L7 Hardware Acceleration Engine | |
| Memory | 512 MB DDR3 |
| Antenna type | 4×4 MIMO Omni-directional high-gain dipole (2.4GHz / 5GHz) |
| LAN port |
|
| WAN port |
|
| External Ports |
|
| Button and switch | WPS, USB/SD eject, Power, Reset, Wi-Fi On/Off |
| Appearance | |
| Size (Height x Width x Depth) | 77 mm x 280 mm x 169 mm |
| Note | The listed sizes of the RT1900ac and RT2600ac don’t include the antennas |
| Weight | 0.7 kg |
| Temperature | |
| Operating Temperature | 5°C to 40°C (40°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification |
|
| Wi-Fi Certification |
|
| Warranty | 2 Years |
| Others | |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 10.80 W (Access) 7.94 W (Idle) |
| Wireless | |
| IEEE 802.11ac |
|
| IEEE 802.11ac wave 2 |
|
| Note | 2×2 160 MHz (contiguous 80 + 80 MHz) is not supported in Japan |
| Wi-Fi Encryption | WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA2/WPA3-Personal, WPA3-Personal/Enterprise, OWE |
| Wi-Fi MAC address filter | |
| Maximum MAC filters | 64 |
| Seamless roaming | 802.11k/v/r standard support |
| Beamforming | |
| DFS | |
| WDS | |
| Schedulable Wi-Fi | |
| Guest Network | |
| Guest Portal | |
| Customized page style | |
| Connection time limit | |
| Password Rotation | |
| WPS 2.0 (Wi-Fi Protected Setup 2.0) | |
| 3G/4G Dongle & Tethering (Learn more) | |
| Maximum connected devices | 100 |
| Note |
|
| Primary Wi-Fi Point | |
| Network | |
| Internet connection | Dynamic IP, Static IP, PPPoE, PPTP, DS-Lite (AFTR) |
| 3G/4G LTE dongle | |
| Android tethering | |
| iPhone tethering | |
| Note | iPhone tethering only supported your Synology Router running SRM 1.2 or above |
| Operating mode |
|
| Port forwarding | Setup via manual management or UPnP |
| Maximum port forwarding rules | 64 |
| Maximum UPnP rules | 64 |
| Port triggering | |
| Maximum port triggering rules | 32 |
| Minimum port triggering timeout | 30s |
| Maximum port triggering timeout | 3600s |
| DMZ | |
| IPv6 | IPv6 DHCP server / client, DS-Lite, 6in4, 6to4, 6rd, Dual-Stack, DHCPv6-PD, IPv6 Relay, FLET’s IPv6 |
| DHCP | Server/client mode, client list, MAC address reservation |
| Maximum DHCP reservations | 500 |
| LAN/WLAN IGMP snooping | |
| VPN |
|
| Policy route, Static route, Network Address Translation (NAT), PPPoE relay | |
| Maximum IPv4 static routes | 100 |
| Maximum IPv6 static routes | 100 |
| Diagnosis tools |
|
| Safe Access | |
| Parental Control | |
| User Profile | 15 |
| Network Profile | 2 |
| Customized Internet schedule | |
| Time Quota | |
| IPv4/IPv6 DNS-based web filter |
|
| Customized allow/block list |
|
| Pause Internet | |
| Reward | |
| Log | |
| Report | |
| Security | |
| Safe Search | Bing, Google, YouTube |
| Threat Intelligence Database | support in IPv4 & IPv6 |
| Google Safe Browsing | support in IPv4 & IPv6 |
| Database auto update | Threat Intelligence Database, Google Safe Browsing, DNS-based web filter |
| Traffic Control | |
| Internet ban, device speed & priority | |
| Application layer (L7) quality of service (QoS) | |
| Maximum device rules | 64 |
| Maximum application rules per device | 32 |
| Traffic Monitor | |
| Live view | |
| Historical statistics | Daily, Weekly, Monthly, Annual |
| Website history | |
| Application Detection | |
| Traffic Report | |
| Country auto update | |
| Schedulable | |
| Traffic analysis period | Daily, Weekly, Monthly, Annual |
| Export formats | .CSV, .HTML |
| VPN Plus Server | |
| VPN Plus Server | Easily create and manage secure VPN access through a web browser or client. Supports various VPN services — Site-to-Site VPN, WebVPN, SSL VPN, Remote Desktop, SSTP, OpenVPN, L2TP over IPSec, and PPTP |
| Maximum Client VPN Access License | 20 |
| Site-to-Site VPN | |
| Maximum Site-to-Site VPN Tunnels | 10 |
| Remote Desktop (RDP + VNC) | 3 |
| Connection List | |
| Log | |
| Report | |
| Threat Prevention | |
| Threat Prevention | Greatly enhance the security of your router, designed to safeguard your network against internet threats |
| Support | |
| Package Center | |
| Cloud Station Server | Sync data from multiple platforms, centralizing it on the router while easily keeping historical versions of important files |
| Maximum Concurrent File Transfers | 128 |
| Note | Cloud Station ShareSync is not supported |
| DNS Server | Helps users find and translate domain names into IP addresses |
| Download Station | Supported download protocols: BT/HTTP/FTP/NZB/eMule |
| Maximum concurrent download tasks | 50 |
| Maximum concurrent BT download tasks | 20 |
| Media Server (DLNA/UPnP®) |
|
| RADIUS Server | Provides centralized authentication, authorization, and accounting for wireless network access |
| Mobile Apps | |
| DS router (Android/iOS) |
|
| VPN Plus (Android/iOS) | |
| DS cloud (Android/iOS) | |
| DS get (Android) | |
| DS file (Android/iOS) | |
| Management | |
| Operating system | Synology Router Manager (SRM) |
| Free OS upgrade | |
| Anywhere access to SRM | Synology QuickConnect & Dynamic DNS (DDNS) |
| Security | Firewall/SPI Firewall, DoS Protection, VPN Pass-through (PPTP, IPSec, L2TP), Auto block, SSL certificate, Security Advisor, two-factor authentication |
| Wake on LAN (WOL) | |
| WOL over QuickConnect | |
| Maximum connected devices | 100 |
| Notification | Email, SMS, push service (via DS router) |
| SSH | |
| SNMP | |
| Configuration backup & restore | |
| User account management | |
| Printer server | Maximum printer: 1 |
| USB/SD Card File Service | |
| File System | EXT4, FAT, NTFS, HFS+ |
| Access support |
|
| Protocol support | Windows file service (CIFS), Mac file service (AFP), FTP/FTPS, WebDAV |
| Apple Time Machine | |
| Shared Folder privileges | |
| Storage hibernation | |
| Environment & Packaging | |
| Environment | RoHS Compliant |
| Packaging Content |
|

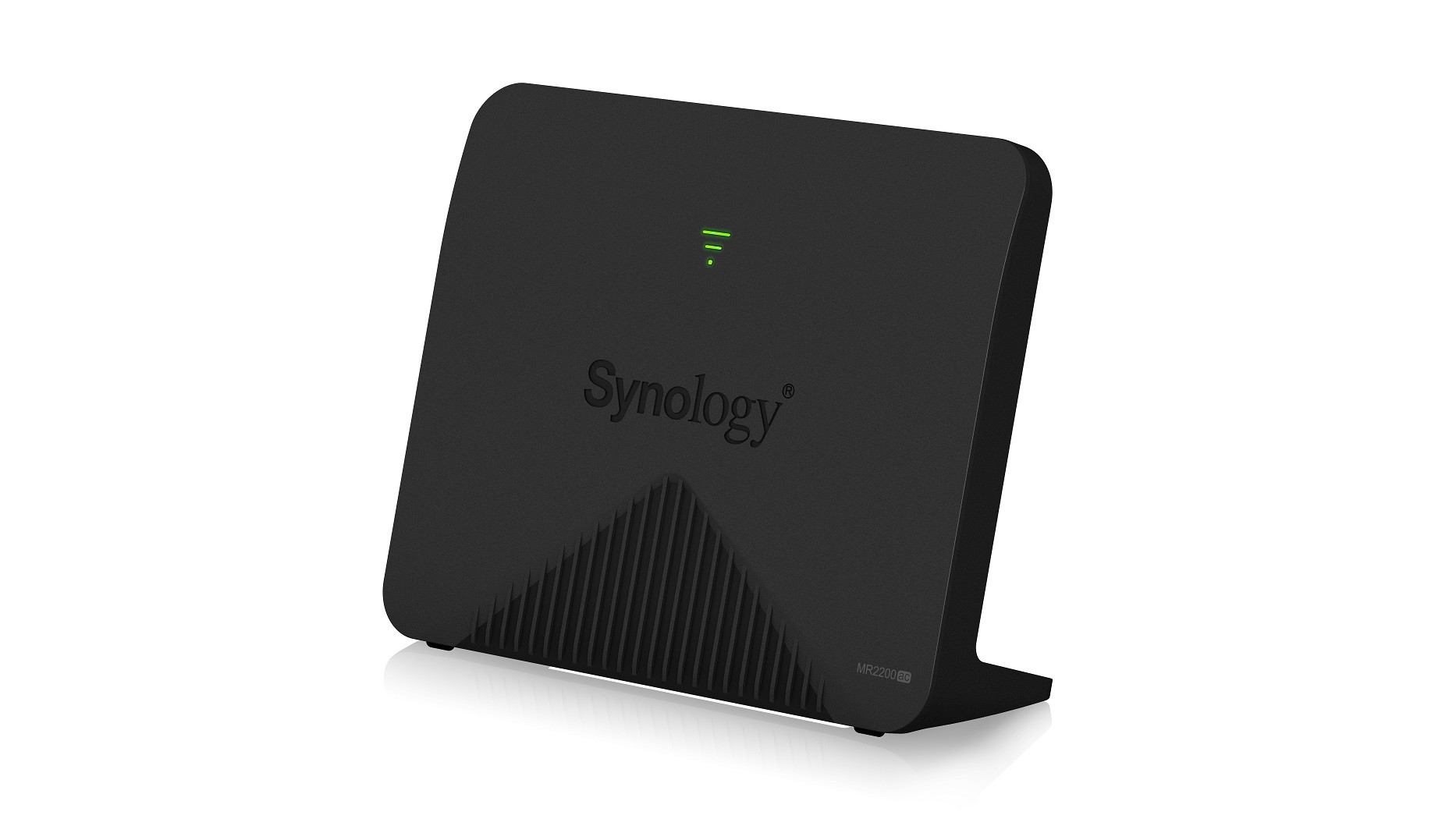

Synology MR2200ac AC2200 router, Tri Band Warranty 2 years
- AC2200 router, Tri Band, MU-MIMO, Single Wi-Fi name and seamless roaming with 802.11 k/v/r support, SRM
- Warranty 2 years
