Hardware Specification :

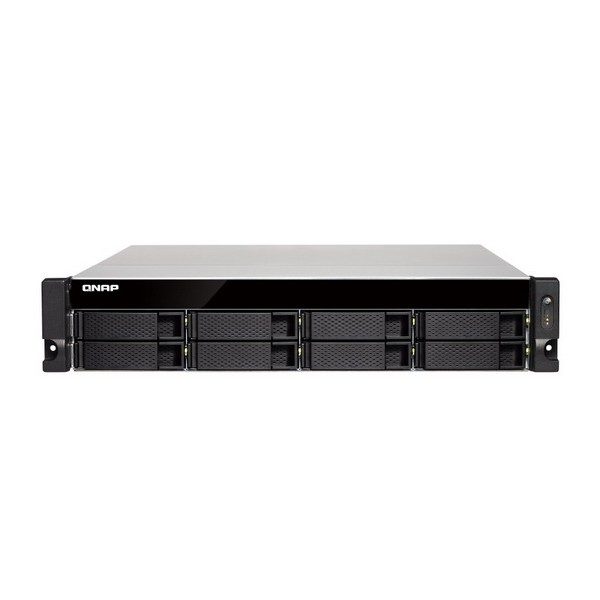

QNAP TS-863XU-RP-4G 8-Bay Rackmount NAS with Redundant Power Supply
| CPU | AMD G-Series GX-420MC quad-core 2.0 GHz |
| System Memory | 4GB DDR3L (1 x 4GB) / Max. 16 GB (2 x 8GB) |
| Flash Memory | 512MB DOM |
| Hard Disk Drive | 8 x 3.5-inch SATA 6 Gbps bays
The system is shipped without Hard Disk |
| Drive Compatibility | • 3.5-inch SATA 6Gb/s HDD
• 2.5-inch SATA 6Gb/s HDD • 2.5-inch SATA 6Gb/s SSD |
| SSD Cache Acceleration | Drive bays 1 to 8 |
| LAN Port | • 1 x RJ45 10GBASE-T via a pre-installed PCIe card
(supporting 10G/5G/2.5G/1G/100M speeds) • 4 x RJ45 Gigabit Ethernet Port |
| PCIe Slot | 1 x PCIe 2.0 x4
(preinstalled with 10GBASE-T card) |
| USB Port | • 2 x USB 3.0
• 2 x USB 2.0 |
| LED Indicators | HDD 1-8, Status, USB, LAN |
| Buttons | Power, Reset |
| Form Factor | 2U, rack mountable |
| Power Supply | 2x ATX 250W (Redundant Power Supply) |
| Dimension | 89 x 482 x 534 mm |
| Weight | Net: 12.64 kg |
