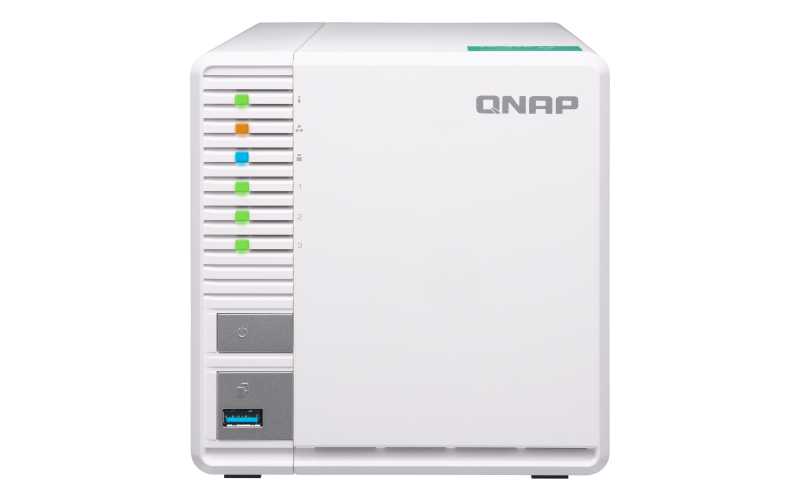

TS-328
| CPU | Realtek RTD 1296 ARM® Cortex-A53 quad-core 1.4 GHz processor
Note: The TS-328 reserves some RAM for use as shared graphics
memory. |
| CPU Architecture | 64-bit ARM |
| Floating Point Unit | |
| Encryption Engine | |
| Hardware-accelerated Transcoding | , up to 1080P |
| System Memory | 2 GB DDR4 RAM, not expandable |
| Maximum Memory | 2 GB DDR4 RAM, not expandable |
| Flash Memory | 4 GB (Dual boot OS protection) |
| Drive Bay | 3 x 3.5-inch
bundled one 2.5″ tray base for installing 2.5″ HDD/SSD; additional purchase can be made from QNAP shop
|
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| Gigabit Ethernet Port (RJ45) | 2
Note: You can set the MTU of LAN 1 up to 1500 while the MTU of LAN 2 can be set up to 9000.
|
| Jumbo Frame | |
| USB 2.0 port | 1 |
| USB 3.0 port | 2 |
| Audio Output | 1 x Built-in speaker, 1 x 3.5mm line out jack
You cannot use the speakers and the line-out jack simultaneously.
|
| Form Factor | Tower |
| LED Indicators | System Status, LAN, USB, HDD1~3 |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 142 × 150 × 260.1 mm |
| Weight (Net) | 1.64 kg |
| Weight (Gross) | 2.69 kg |
| Operating temperature | 0 – 40 °C (32°F – 104°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | External, 65 W, AC 100 to 240 V |
| Power Consumption: HDD Sleep Mode | 7.24 W |
| Power Consumption: Operating Mode, Typical | 18.35 W
With drives fully populated
|
| Fan | 1 x 9 cm smart Fan (12V DC) |
| Sound Level | 16.5 db(A) |
| Other Interfaces | Kensington security slot |
| System Warning | Voice prompts or Buzzer |
| Kensington Security Slot |
