Hardware Specification :

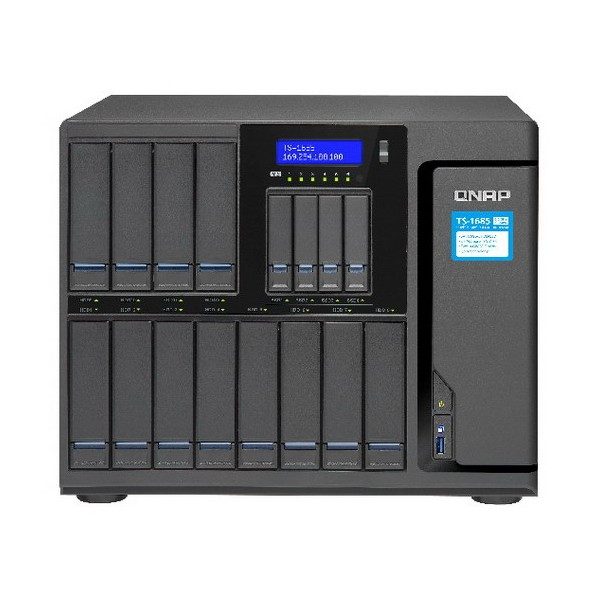

QNAP TS-1685-D1521-16G 16-Bay Super NAS
| CPU | Intel® Xeon® Processor D-1521, 4-core 2.4 GHz |
| System memory | 16GB non-ECC RAM (8GB UDIMM x 2)
Expandable Max. 128GB (32 x 4) |
| Flash Memory | 512MB DOM |
| Hard Disk Drive | 4 x 2.5″ SSD slot
12 x 2.5″/3.5″ HDD/SSD slot The system is shipped without Hard Disk |
| Supported Hard Drive | SATA 6Gb/s HDD and SSD |
| M.2 Slot | 6 x M.2 2242/2260/2280/22110 SATA 6Gb/s SSD
The M.2 SSD is not included as standard. |
| LAN Port | 2 x 10GBASE-T ports,
4 x Gigabit ports |
| USB | Front: 1 x USB 3.0 port; Rear: 2 x USB 3.0 port |
| LED Indicators | System status, 2.5” SSD, M.2 SSD, 3.5” HDD |
| Audio Output | 1 x built-in speaker, 1 x 3.5mm Line-out jack
(Only one of the above audio output ports can work at a time) |
| Buttons | Power button, Reset button, USB one-touch-backup button |
| PCIe Slot | Slot 1: PCIe Gen.3 x8
Slot 2: PCIe Gen.2 x4 Slot 3: PCIe Gen.3 x8 |
| Dimensions | 303.84 x 369.89 x 319.8 mm |
| Weight | Net: 13.39 kg |
