Hardware Specification :

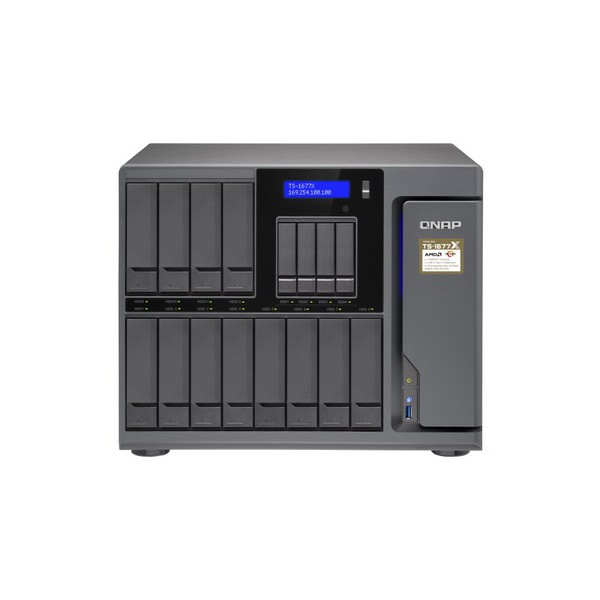

QNAP TS-1677X-1700-64G 16-Bay AMD Ryzen NAS
| CPU | AMD Ryzen 7 1700 8-core/16-thread 3.0 GHz processor, Turbo Core 3.7 GHz |
| System memory | 64 GB DDR4 (4 x 16 GB)
Maximum memory 64 GB (4 x 16 GB) |
| Drive Bay | 12 x 3.5-inch SATA 6 Gbps bays
4 x 2.5-inch SATA 6 Gbps bays, max 9.5mm drive height The system is shipped without Hard Disk |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives2.5-inch bays: 2.5-inch solid state drives |
| LAN Port | 2 x 10GBASE-T RJ45, supporting 10G/5G/2.5G/1G/100M 4x RJ45 Gigabit Ethernet Port |
| PCIe Slot | Slot 1: Gen3 x8 Slot 2: Gen3 x4 Slot 3: Gen2 x4 |
| USB | 8 x USB 3.0
Front: 1 x USB 3.0 Type-A Back: 6 x USB 3.0 Type-A; 1 x USB 3.0 Type-C |
| HDMI Output | Optional: With PCIe expansion card |
| Audio | 2 x 3.5 mm dynamic microphone jacks 1 x 3.5 mm line-out jack 1 x speaker Alarm buzzer |
| Form Factor | Tower |
| Dimensions | 303.84 x 369.89 x 319.8 mm |
| Weight | 13.39 kg |
