Hardware Specification :

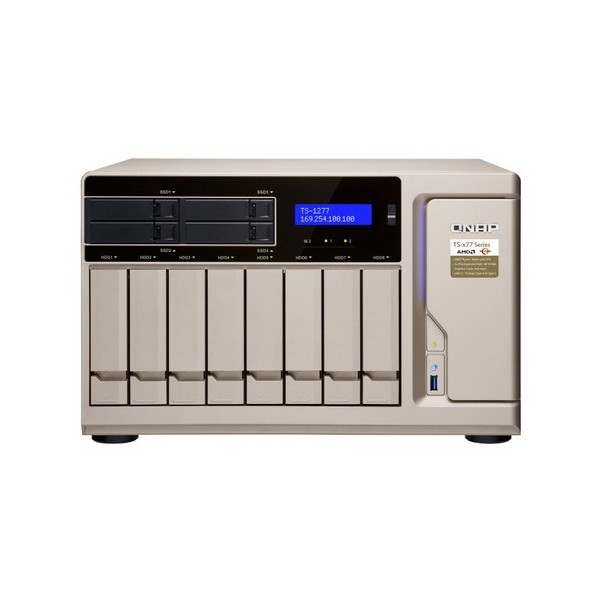

QNAP TS-1277-1700-16G 12-Bay NAS
The system is shipped without HDD
| CPU | AMD Ryzen 7 1700 8-core/16-thread 3.0 GHz processor,
Turbo Core 3.7 GHz |
| Architecture | 64-bit |
| Graphics | Optional (with PCIe expansion card) |
| Encryption Engine | AES-NI |
| System Memory | 16 GB DDR4 (2 x 8 GB) /
Maximum Memory 64 GB (4 x 16 GB) |
| Flash Memory | 512MB DOM |
| Hard Disk Drive | 8 x 3.5-inch SATA 6 Gbps bays
4 x 2.5-inch SATA 6 Gbps bays The system is shipped without Hard Disk |
| M.2 SSD Slot | 2 x M.2 2240/2260/2280/22110 SATA SSDs
The M.2 SSD is not included as standard. |
| LAN Port | 4 x Gigabit RJ45 LAN ports
Optional : 10 Gigabit With PCIe expansion |
| PCIe Slot | 1 x PCIe 3.0 x8
1 x PCIe 3.0 x4 1 x PCIe 2.0 x4 |
| LCD Panel | Monochrome backlit LCD display with
Enter and Select buttons |
| USB | 2 x USB 3.1 10 Gbps
• Back: 1 x USB 3.1 10 Gbps Type-C • Back: 1 x USB 3.1 10 Gbps Type-A 6 x USB 3.0 • Front: 1 x USB 3.0 Type-A (USB One Touch Copy) • Back: 5 x USB 3.0 Type-A |
| HDMI | Optional: With PCIe expansion |
| Audio | • 2 x 3.5 mm dynamic microphone jacks
• 1 x 3.5 mm line-out jack • 2 x speakers |
| Form Factor | Tower |
| Dimensions | 234.6 x 369.9 x 319.8 mm |
| Weight | Net: 11.55 kg |
| Warranty | 2 year |
