| Camera | ||
|---|---|---|
| WDR (Wide Dynamic Range): | DWDR | |
| Image Sensor: | 4 MP CMOS image sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 2560 (H) × 1440 (V) | |
| Min. Illumination: | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° | |
| Day& Night: | IR cut filter | |
| Video Frame Rate: | PAL: 1080p@25fps, 4 MP@25fps NTSC: 1080p@30fps, 4 MP@30fps |
|
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| Lens | ||
|---|---|---|
| Horizontal Field of View: | 100.2° (2.8 mm), 88° (3.6 mm), 56.9° (6 mm) | |
| Menu | ||
|---|---|---|
| D/N Mode: | Auto/Color/BW (Black and White) | |
| BLC: | Support | |
| AGC: | High/Medium/Low/Off | |
| Language: | English | |
| Function: | Brightness, Sharpness, DNR, Mirror, Smart IR | |
| General | ||
|---|---|---|
| Material: | Metal | |
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±15% | |
| Power Consumption: | Max. 4 W | |
| Weather Proof: | IP66 | |
| IR Range: | Up to 40m | |
| Dimension: | 127.92 mm × 102.26 mm (5.04″ × 4.03″) | |
| Weight: | 450 g (0.99 lb.) | |

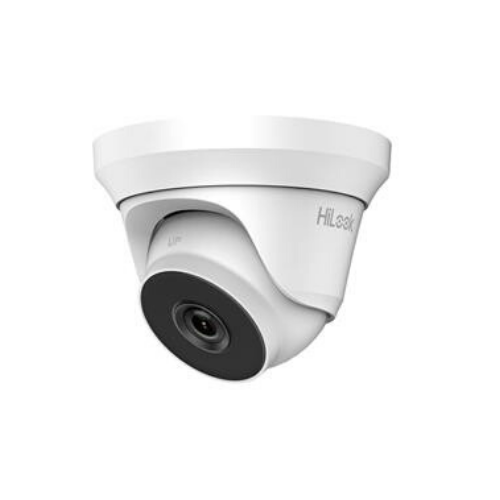

มาเป็นคนแรกที่วิจารณ์ “Hilook THC-T240-M 4 MP EXIR Turret Camera Warranty 2 Years”
