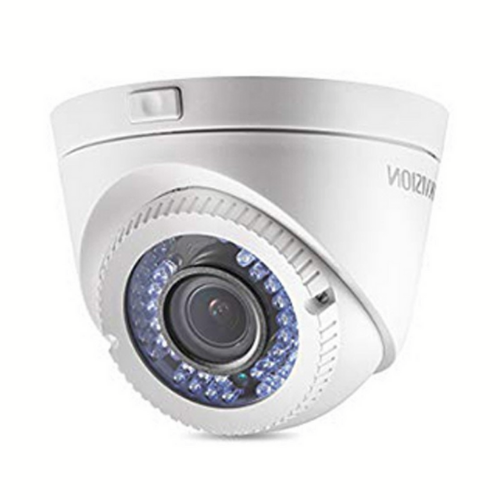

- Camera
- Image Sensor2 MP progressive scan CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm to 12 mm
- Focal Length & FOV105.2° to 32.8 °
- Lens MountΦ14
- Image
- Image SettingsBrightness, Sharpness, DNR, Mirror
- Frame RatePAL: 1080p@25fps,NTSC: 1080p@30fps
- Day/Night ModeSmart/color/BW(Black and White)
- Wide Dynamic Range (WDR)DWDR
- Image EnhancementBLC
- AGCLow/middle/high
- Interface
- Video OutputTVI only
- General
- MaterialEnclosure: Plastic,Upper turret: Metal,Lower turret: Plastic,Mounting base: Plastic
- DimensionØ 130.5 mm × 102.4 mm (5.14″ × 4.03″)
- WeightApprox. 710 g (1.57 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
- LanguageEnglish, Chinese
- Power Supply12 VDC ±15%/PoC.at
- ConsumptionMax. 6.5 W
- IR RangeUp to 40 m
- Approval
- ProtectionIP66
