- Camera
- Image Sensor2 MP CMOS
- Signal SystemPAL/NTSC
- Resolution1920 (H) × 1080 (V)
- Frame Rate
TVI: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
AHD: 1080p@25fps/30fps
CVBS: PAL/NTSC
- Min. Illumination0.0005 Lux@(F1.0, AGC ON)， 0 Lux with white light ON
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Slow ShutterMax. 16 times
- Lens2.8 mm, 3.6 mm, 6 mm Fixed Lens
- Field of View
2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°
3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°
6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 59°
- Lens MountM12
- Light AlarmSolid Light Alarm (White Light)
- Day & Night24/7 Color Imaging
- WDR (Wide Dynamic Range)≥130 dB
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
- Image
- White LightAuto/Off
- Image ModeSTD/HIGH-SAT/HIGHLIGHT
- AGCYes
- Day/Night ModeColor
- White BalanceAuto/Manual
- AE (Auto Exposure) ModeWDR;BLC;HLC;Global;HLS
- Privacy Mask4 programmable privacy masks
- Motion Detection4 programmable motion areas
- Noise Reduction3D DNR/2D DNR
- LanguageEnglish
- FunctionDefective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;Anti-Banding;Smart Light
- Lighting Mode White Light
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- Operating Conditions-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
- Power Supply
12 VDC ± 25%,
*You are recommended to use one power adapter to supply the power for one camera.
- ConsumptionMax. 2.9 W
- Protection LevelIP67
- MaterialMetal
- White Light RangeUp to 20 m
- CommunicationHIKVISION-C
- Dimension161.1 mm × 70 mm × 70 mm (6.34″ × 2.76″ × 2.76″)
- WeightApprox. 388 g (0.86 lb.)

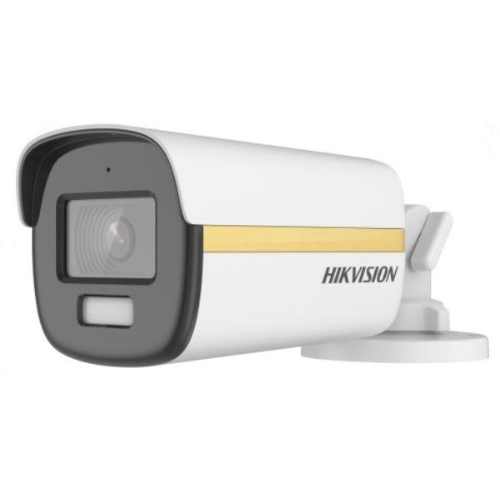

มาเป็นคนแรกที่วิจารณ์ “Hikvision DS-2CE10DF3T-FS 2 MP ColorVu Fixed Mini Bullet Camera By Vnix Group”
