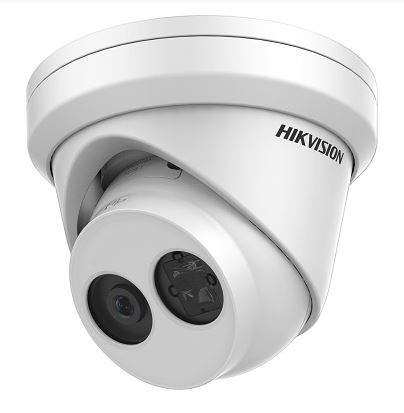

Camera
Image Sensor: 1/2.8″ Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: 2.8 mm: horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
4 mm: horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
6 mm: horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62°
Lens Mount: M12
Adjustment Range: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Focus: Fixed
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: 256Kbps~16Mbps
Triple Streams: Yes
Max. Image Resolution: 1920 x 1080
Frame Rate: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720)
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Image Enhancement: BLC/3D DNR/ROI/HLC
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Target Cropping: No
ROI: 1 fixed region for main stream and sub-stream
Day/Night Switch: Day/Night/Auto/Schedule
Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G),ISAPI
Interface
Audio: 1 audio input (built-in mic), mono sound(-U)
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Smart Feature-set
Behavior Analysis: Line crossing detection, intrusion detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Recognition: Face Detection
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: 12 VDC, 0.5A, max. 6W
PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W
Weather Proof: Without -U: IP67 With -U: IP66
IR Range: Up to 30m
Dimensions: Camera: Φ 127.3 × 95.9 mm (5″ × 3. 8″)
With package: 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)
Weight: Camera: Approx. 635 g (1.4 lb.)
With package: Approx. 890 g (1.96 lb.)
