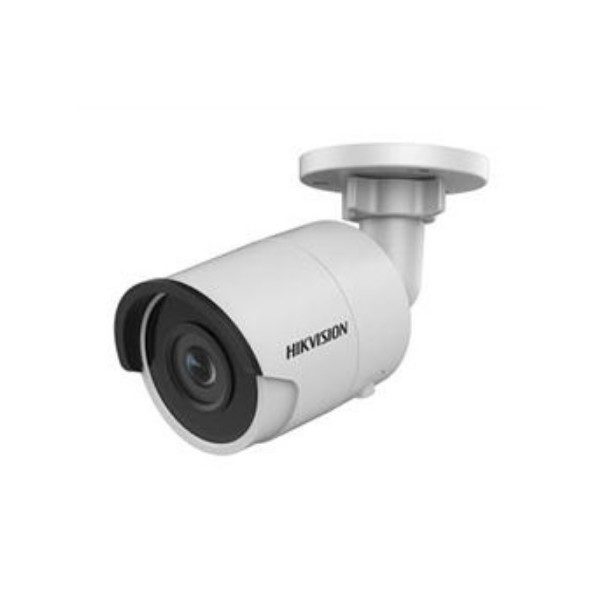

Hikvision DS-2CD2045FWD-I(2.8mm, 4mm) Warranty 3 years

Hikvision กล้องวงจรปิด IP รุ่น DS-2CD2045FWD-I

1/2.5″ Progressive Scan CMOS / 2688 × 1520 @30fps / 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens / H.265, H.265+, H.264+, H.264 / 4 Behavior analyses / 120dB WDR / Powered by Darkfighter / BLC/3D DNR/ROI/HLC / IR range: up to 30 m / Bulit-in microSD/SDHC/SDXC card slot, up to 128 GB

Camera

• Image Sensor : 1/2.5″ Progressive Scan CMOS
• Signal System : PAL/NTSC
• Min. Illumination : Color: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR
• Shutter time : 1/3 s to 1/100,000 s
• Slow shutter : Support
• Lens : 2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°
  4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°
  6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°
  8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°
  12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°
• Lens Mount : M12
• Adjustment Range : Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• Day& Night : IR Cut Filter
• Wide Dynamic Range : 120 dB
• Digital noise reduction : 3D DNR
• Focus : Fixed

Compression Standard

• Video Compression : H.265+/H.265/H.264+/H.264/MJPEG
• H.264 code profile : Main Profile/High Profile
• Video bit rate : 32Kbps~16Mbps
• Triple Streams : Yes


• Max. Image Resolution : 2688 × 1520
• Frame Rate : 50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
  60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
• Sub Stream : 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
  60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream : 50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288)
  60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
• Image Enhancement : BLC/3D DNR/HLC
• Image Settings : Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
• ROI : Support 1 fixed region for main stream and sub stream separately
• Day/Night Switch : Day/Night/Auto/Schedule

Network

• Network Storage:
• microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Alarm Trigger:
• Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Protocols:
• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
• IGMP, 802.1X, QoS, IPv6, Bonjour
• General Function:
• One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
• mask, Watermark, IP address filtering
• System Compatibility:
• ONVIF (Profile S, Profile G), ISAPI

Interface

• Communication Interface : 1 RJ45 10M / 100M Ethernet interface
• On-board storage : Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Reset Button : Yes

Smart Feature-set

• Behavior Analysis : Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
• Line Crossing Detection : Cross a pre-defined virtual line
• Intrusion Detection : Enter and loiter in a pre-defined virtual region
• Unattended Baggage : Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
• Object Removal : Objects removed from the pre-defined region, such as the exhibits on display.
• Exception Detections : Scene change detection
• Recognition : Face Detection

General

• Operating Conditions : -30 °C ~ 60 °C (-22 °F ~ 140 °F)
  Humidity 95% or less (non-condensing)
• Power Supply : 12 VDC ± 25%, PoE (802.3af Class3)
• Power Consumption : 12 VDC, 0.5 A, max. 5.5 W
  PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7 W
• Weather Proof : IP67
• IR Range : Up to 30m
• Dimensions : Camera: Φ70 × 155 mm (Φ2.8″ × 6.1″)
  Package: 216 × 121 × 118 mm (8.5″ × 4.8″ × 4.7″)
• Weight : Camera: 410 g (0.9 lb.)

รับประกันสินค้า

• รับประกันสินค้า 3 ปี
