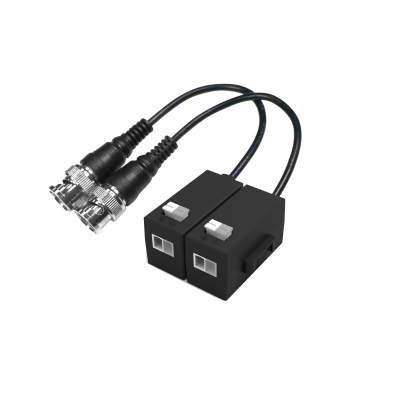

Dahua PFM800-E 1 HDCVI BALUN (1080P 250M) Warranty 3 Years

>Real-time transmission over UTP CAT5E/6 cable.
>Passive, no need for power supply.
>With female BNC connector, and pluggable screw terminal connections.

หมวดหมู่: Accessories, CCTV/Security/Accessories, Dahua, IP

รายละเอียด
บทวิจารณ์ (0)

Model	PFM800-E
Properties
Transmission Signal	1 channel
Transmission Distance	HDCVI 720P: max.400m(1312.34ft) 1080P: max.250m(820.21ft)
Category Type	UTP CAT 5E/6
Video Transmission Properties And Port
Coaxial Video Connector	BNC-M
Twisted-pair Video Connector	Push-terminal
Compatible Format	HDCVI/AHD/TVI/CVBS
Resolution	720P/1080P
Anti-interference	＞60db
Protection
ESD	1a contact discharge electricity level 3
	1b air discharge electricity level 3
	Per: IEC61000-4-2
Coaxial Cable Connector	2KV(common-code) Per: IEC1000-4-5
UTP Cable Connector	2KV(different-code), 4KV(common-code), Per: IEC1000-4-5
Impedance
BNC Male	75 ohms
UTP Cable	100 ohms
Physical Properties
Dimension(LWH)	180mm19mm16mm(7.09”x0.75”x0.63”)
Shell	ABS
Color	Black
N.W.	42g/pair (0.09lb)
Stability
MTBF	＞10000h
Environmental
Operating Temperature	-10℃~+55℃(14℉~131℉)
Storage Temperature	-20℃~+70℃(-4℉~158℉)
Humidity	0~95%(non-condensing)
