System Main Processor Dual-core embedded processor Operating System Embedded LINUX Audio and Video IP Camera Input 8 Channel Two-way Talk 1 Channel Input, 1 Channel Output, RCA Display Interface 1 HDMI, 1 VGA Resolution HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 Decoding Capacity 1ch@8MP 30fps, 4ch@1080P 30fps Multi-screen Display 1/4/8/9 OSD Camera title, Time, Camera lock, Motion detection, Recording Recording Compression H.265/H.264 Resolution 8MP/6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc. Record Rate 80Mbps Bit Rate 16Kbps ~ 20Mbps Per Channel Record Mode Manual, Schedule(Regular(Continuous), MD, Stop Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec Video Detection and Alarm Trigger Events Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips Video Detection Motion Detection, MD Zones: 396 (22 × 18), and Tampering
Alarm input N/A Relay Output N/A Playback and Backup Playback 1/4 Search Mode Time /Date, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom Backup Mode USB Device/Network Third-party Support Third-party Support Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more Network Interface 1 RJ-45 port (10/100/1000Mbps) PoE 8 ports (IEEE802.3at/af) Network Function HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), Easy4ip Optical Fiber Interface N/A Max. User Access 128 users Smart Phone iPhone, iPad, Android Interoperability ONVIF 2.4, SDK, CGI Storage Internal HDD 1 SATA III Port, up to 6TB capacity for each HDD HDD Mode Single eSATA N/A Auxiliary Interface USB 2 ports (2 Rear USB2.0) RS232 N/A RS485 N/A Electrical Power Supply Single, DC48V/2A Power Consumption NVR: <5.8W (without HDD) PoE: Max 25.5w for single port, 80w in total Environmental Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH Construction Dimensions(W×D×H) Smart 1U, 270mm×204.7mm×45.7mm (10.6″ x 8.1″ x 1.8″)
Net Weight 0.65kg (1.43 lb) (without HDD) Gross Weight 1.8kg(3.97 lb)(without HDD) Certifications CE EN55032, EN55024, EN50130-4, EN60950-1 FCC Part 15 Subpart B, ANSI C63.4-2014 UL UL60950-1

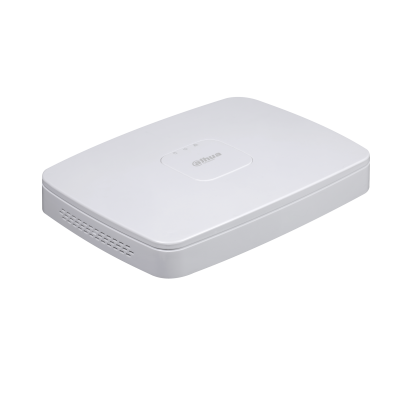

Dahua NVR2108-8P-4KS2 8 Channel Smart 1U 8PoE Lite 4K H.265 Network Video Recorder Warranty 3 years
