| Camera | |
| Image Sensor | 1/2.8″ CMOS |
| Effective Pixels | 1937(H)×1097(V), 2.1MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/4s~1/100000s |
| Minimum Illumination | 0.005Lux/F1.6, 30IRE, 0Lux IR on |
| S/N Ratio | More than 65dB |
| IR Distance | Up to 30m (98feet) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 12 |
| Lens | |
| Lens Type | Fixed lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 3.6mm (2.8mm, 6mm Optional) |
| Max. Aperture | F1.6 |
| Angle of View | H: 87° (110.5°/52.9°) |
| Focus Control | N/A |
| Close Focus Distance | 1200 mm (500 mm, 1800 mm) 47.24 “(19.69”, 70.87 “) |
| Pan / Tilt / Rotation | |
| Pan/Tilt/Rotation Range | Pan: 0 ° ~ 360 ° Tilt: 0 ° ~ 90 ° Döndürme: 0 ° ~ 360 ° |
| Display | |
| Resolution | 1080P (1920×1080) |
| Video | |
| Frame Rate | 25/30fps@1080P, 25/30fps@720P |
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / WDR |
| WDR | 120dB |
| Gain Control | AGC |
| Noise Reduction | 2D / 3D |
| White Balance | Auto / Manual |
| Smart IR | Auto / Manual |
| Certifications | |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Bölüm 15 alt bölüm B, ANSI C63.4-2014) UL (UL60950-1 + CAN / CSA C22.2 No.60950-1) |
| Interface | |
| Audio Interface | N/A |
| Eelectrical | |
| Power Supply | 12V DC ±25% |
| Power Consumption | Max 2.6W (12V DC, IR on) |
| Environmental | |
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Strorage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Construction | |
| Casing | Aluminium |
| Dimensions | Φ93.4mm×79.4mm (Φ3.68″×3.13″) |
| Net Weight | 0.28kg (0.62lb) |
| Gross Weight | 0.38kg (0.84lb) |

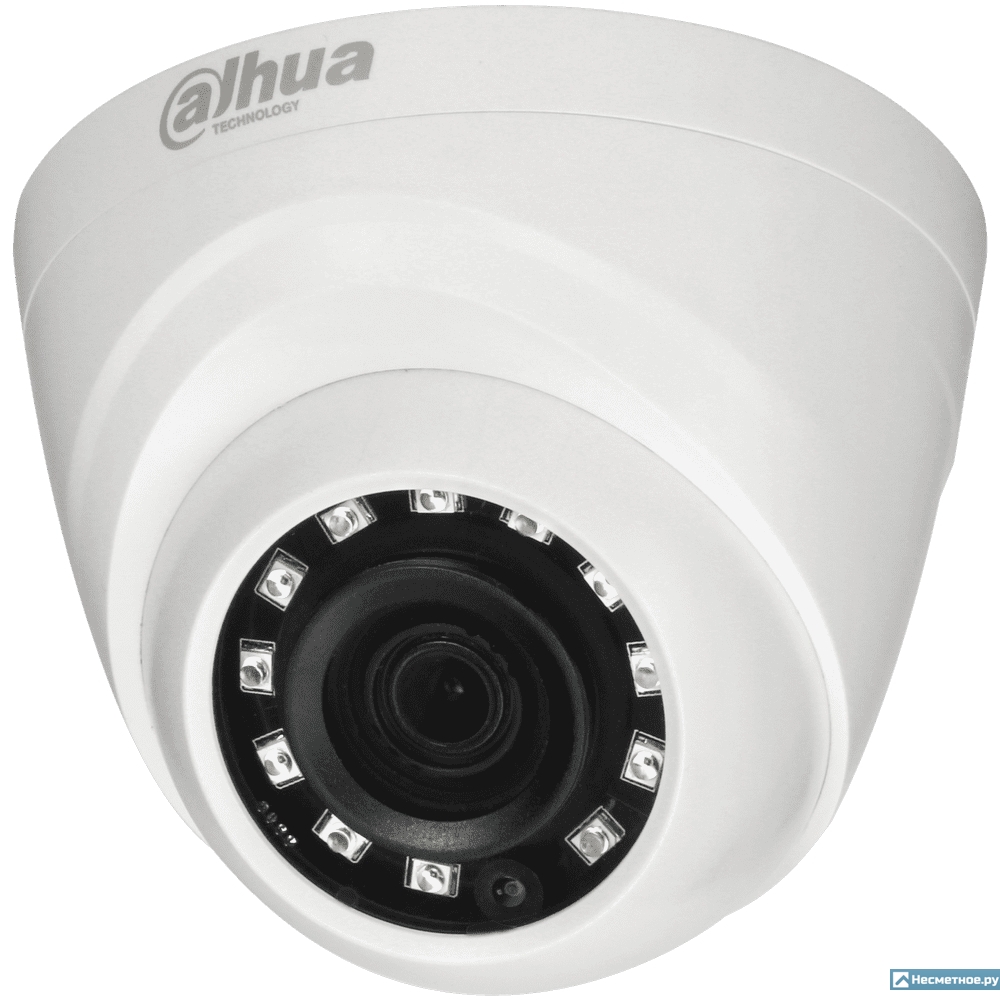

Dahua HAC-HDW2231MP-0360B 2MP Starlight HDCVI IR Eyeball Camera Warranty 3 years
