| System | ||||
| Main Processor | Quad-core embedded processor | |||
| Operating System | Embedded LINUX | |||
| Video& Audio | ||||
| IP Camera Input | 16 channel | 32 channel | 64 channel | |
| Two-way Talk | 1channel Input, 1channel Output, RCA | |||
| Display | ||||
| Interface | 2 HDMI (1 HDMI up to 3840×2160), 1 VGA | |||
| Resolution | 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 | |||
| Display Split | 1/4/8/9/16 | 1/4/8/9/16/25/36 | 1/4/8/9/16/25/36 | |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |||
| Recording | ||||
| Compression | H.265/H.264/MJPEG/MPEG4 | |||
| Resolution | 12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc. | |||
| Record Bit Rate | 320Mbps | |||
| Bit Rate | 16kbps~ 20Mbps per channel | |||
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop | |||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |||
| Video Detection & Alarm | ||||
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips | |||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |||
| Alarm Input | 16 channel | |||
| Relay Output | 6 channel | |||
| Playback & Backup | ||||
| Sync Playback | 1/4/8/16 | |||
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | |||
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |||
| Backup Mode | USB Device/Network/Internal SATA burner/eSATA Device | |||
| Network | ||||
| Ethernet | 2 RJ-45 port (10/100/1000Mbps) | |||
| 1 RJ-45 port (10/100/1000Mbps)(for -16P model) | ||||
| PoE | 16 ports (IEEE802.3af/at) (for -16P model) | |||
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P | |||
| Max. User Access | 128 users | |||
| Smart Phone | iPhone, iPad, Android | |||
| Storage | ||||
| Internal HDD | 4 SATA ports, up to 24TB | |||
| External HDD | 1 eSATA port | |||
| Auxiliary Interface | ||||
| USB | 3 ports (2 Rear USB3.0,1 Front USB2.0) | |||
| RS232 | 1 port, For PC communication&Keyboard | |||
| General | ||||
| Power Supply | Single, AC 100~240V, 50/60 Hz | |||
| Power Consumption | NVR: 16.7W for non-PoE model(without HDD) 17.5W for PoE model(without HDD) |
|||
| PoE: Max 25.5W for single port(for -16P model), 150W in total | ||||
| Working Environment | -10°C~+55°C / 10%~90%RH / 86~106kpa | |||
| Dimension (W×D×H) |
1.5U, 440mm×413mm×75mm | |||
| Weight | 4.3KG for non-PoE model(without HDD) 4.65KG for PoE model(without HDD) |
|||

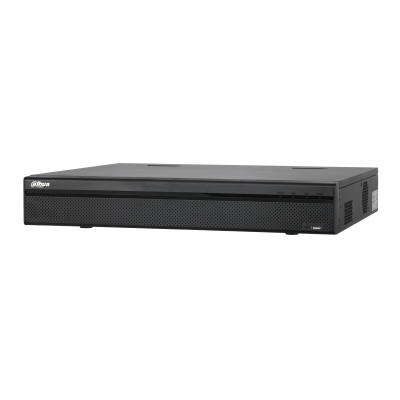

Dahua DHI-NVR5416-4KS2 16CH PRO NVR 12MP,16CH@1080P Warranty 3 Years
>Up to 16/32/64 channel IPC input
>H.265/H.264/MJPEG/MPEG4 codec decoding
>Max 320Mbps incoming bandwidth
>Up to 12Mp resolution preview&playback
>Max 16ch@1080P H.265/H.264 decoding
>2HDMI/VGA simultaneous video output
>4/8/16 channel synchronous realtime playback, GRID interface
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
>ONVIF Version 2.4 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 4 SATA HDDs up to 24TB, 3 USB(2 USB3.0, 1USB2.0)
>Support IPC UPnP, 16PoE ports for PoE model
>Multiple network monitoring: Web, CMS(DSS/Smart PSS) & Mobile phone (DMSS)
