| Camera | |
| Image Sensor | 1 / 2.8 “2 Megapixel progressive scan CMOS |
| Effective Pixel | 1920 (H) x1080 (V) |
| Scanning System | progressive |
| Electronic Shutter Speed | Auto / Manual, 1/3 ~ 1 / 100000s |
| Minimum Illumination | 0.08 Lux / F1.6 (Color), 0.10 Lux / F1.6 (Black & White), 0 Lux / F1.6 (IR) |
| S / N Ratio | Greater than 56dB |
| Camera Features | |
| Number of IR LEDs | 2 units |
| Max. IR LEDs Length | Up to 30m 3.6mm lens (6mm lens, up to 50m) |
| Night and day | Auto (ICR) / Color / B / W |
| Backlight Compensation | BLC / HLC / DWDR |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D |
| Custom Field Mask | Up to 4 Area |
| Lens | |
| Focus Range | 3.6mm (6mm Optional) |
| Max. Openness | F1.6 |
| Focus Control | Manual |
| Point of view | 3.6 mm H: 87 ° V: 46.4 ° D: 103.8 ° 6 mm H: 53 ° V: 29.7 ° D: 61 ° |
| Lens Type | Fixed Lens |
| Mounting Type | Board-in Type |
| Video | |
| Compression | H.264 / H.264H / H.264B / MJPEG |
| Resolution | (1280 x 720) / D1 (704 x 576/704 x 480) / CIF (352 x 288/352 x 240) / 1080P (1920 x 1080) /1.3M (1280 x 960) / 720P |
| Max. Frame Rate | 1920×1080 @ 25 / 30fps1280x960 @ 25 / 30fps
1280 x 720 @ 25 / 30fps 704 × 576 @ 25/704 × 480 @ 30 fps 352 x 288 @ 25/352 x 240 @ 30 fps |
| Bit Rate | H.264: 5 Kbps to 8 Mbps MJPEG: 12 Kbps to 2 Mbps |
| Network | |
| Ethernet | RJ-45 (10 / 100Base-T) |
| Protocol | HTTP, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4 / v6, QoS, UPnP, NTP |
| ONVIF | ONVIF, CGI |
| Max. User Access | 20 users |
| Smart phone | iPhone, iPad, Android, Windows Phone |
| Interface | |
| Memory Slot | Micro SD Max. 128GB |
| Power | |
| Power source | DC12V, PoE (802.3af) |
| Power consumption | Max. 6.2W |
| Working Environment | |
| Working conditions | -40 ° C to 60 ° C, less than 95% RH |
| Certificate of Protection | IP67 |
| Dimensions | Φ194mm × 96mm × 89mm |
| Net weight | 0.64kg (0.78kg with package) |

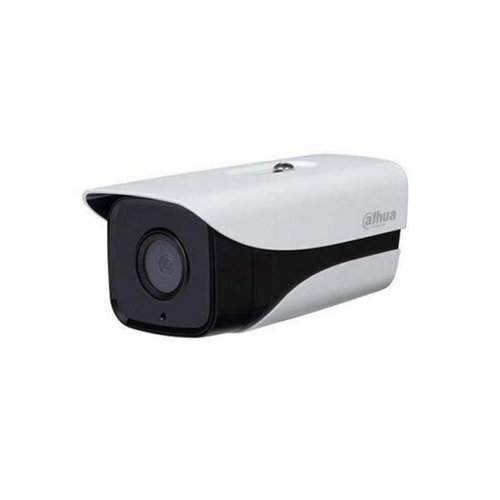

Dahua DH-IPC-HFW1220M-S-I2 2MP HD Network IR Bullet Camera Warranty 3 years
