dahua-dh-ipc-hdbw5231rp-ze-wdr-starlight-dome-camera-remote-fus-27-135mm-varifocal-ip67-epoeoc

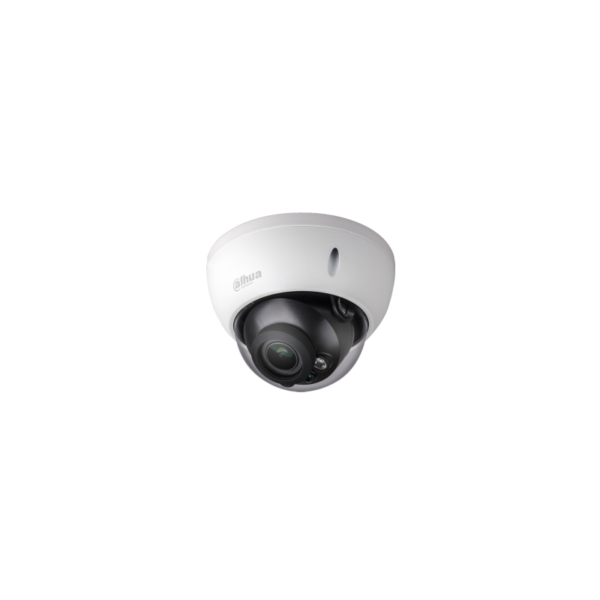

Dahua DH-IPC-HDBW5231RP-ZE 2MP progressive scan STARVIS™ CMOS Warranty 3 years

หมวดหมู่: CCTV/Security/Accessories, Dahua, IP, IP Camera

รายละเอียด
บทวิจารณ์ (0)

Standard:	TCP/IP
Sensor:	1/2.8 ” Progressive Scan CMOS
Matrix size:	2.1 Mpx
Resolution:	1920 x 1080 – 1080p 1280 x 1024 – 1.4 Mpx 1280 x 960 – 1.3 Mpx 1280 x 720 – 720p
Operation modes:	Main and sub streams may be in any configuration Firmware 2.460.0000.15.R, build: 2017-09-07 Main stream : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720 Sub stream 1 : 704 x 576, 352 x 288 Sub stream 2 : 1920 x 1080, 1280 x 720, 704 x 576, 352 x 288
Lens:	2.7 … 13.5 mm – Motozoom
View angle:	101 ° … 31 ° (manufacturer data) 108 ° … 30 ° (our tests result)
Range of IR illumination:	50 m
S/N ratio:	> 50 dB
RS-485 interface:
Memory card slot:	Micro SD memory cards up to 128GB support (possible local recording)
Image compression method:	H.265 / H.264 / MJPEG
Alarm inputs / outputs:	1 / 1
Audio:	External microphone input Audio output Bi-directional audio streaming support Audio detection
Bitrate:	24 … 9472 kbps @ H.264 14 … 5630 kbps @ H.265
Network interface:	10/100 Base-T (RJ-45)
Network protocols:	HTTP, HTTPS, IPv4/IPv6, TCP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, UPnP, NTP, QoS, Bonjour, IEEE 802.1x, Multicast, ICMP, IGMP, SNMP, ARP
WEB Server:	Built-in, Web Viewer
Max. number of on-line users:	20
ONVIF:	16.12
Main stream frame rate:	50 fps @ 1080p
Mobile phones support:	Port no.: 37777 or access by a cloud (P2P) Android: Free application gDMSS Plus, Android: Free application IMOU iOS (iPhone): Free application iDMSS Plus, iOS (iPhone): Free application IMOU
Default IP address:	192.168.1.108
Default admin user / password:	admin / admin
Web browser access ports:	80, 37777
PC client access ports:	37777
Mobile client access ports:	37777
Port ONVIF:	80
RTSP URL:	rtsp://admin:admin@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:admin@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Sub stream
Main features:	Motozoom lens – Controlling from browser, NVR or software ICR – Movable InfraRed filter 3D-DNR – Digital Noise Reduction WDR – Wide Dynamic Range BLC – configurable Back Light Compensation HLC – High Light Compensation (spot) IVS analysis : crossing the line (tripwire), scene changing, intrusion, abandoned/missing object, face detection Audio detection Day/Night mode (color/b&w/auto) Configurable Privacy Zones
Power supply:	PoE (802.3af), ePoE, 12 V DC / 710 mA
Power consumption:	≤ 8.5 W
Housing:	Dome – Metal
Color:	White
Vandal-proof:	IK10
Operation temp:	-30 °C … 60 °C
“Index of Protection”:	IP67
Weight:	0.476 kg
Dimensions:	Ø 122 x 89 mm
Supported languages:	English, Polish
Manufacturer / Brand:	DAHUA
Guarantee:	3 years
