GENERAL
Phase
| Single Phase |
UPS Topology
| Line-interactive |
Energy Saving Technology
| GreenPower UPS™ Bypass Technology |
INPUT
Nominal Input Voltage ( Vac )
| 230 ± 10% |
Input Voltage Range ( Vac )
| 165 ~ 280 |
Input Frequency ( Hz )
| 50 ± 5 |
| 60 ± 5 |
Input Frequency Detection
| Auto-sensing |
Rated Input Current ( A )
| 4.55 |
Input Connector Type
| IEC C14 |
Detachable Power Cord Plug Type
| NEMA 5-15P x 1 |
Power Cord Length (ft.)
| 6 |
Power Cord Length (m.)
| 1.8 |
OUTPUT
Capacity (VA)
| 1000 |
Capacity (Watts)
| 550 |
On Battery Waveform
| Simulated Sine Wave |
On Battery Voltage(s) ( Vac )
| 230 ± 10% |
On Battery Frequency ( Hz )
| 50 ± 1% |
| 60 ± 1% |
Automatic Voltage Regulation (AVR)
| Single Boost, Single Buck |
Overload Protection
| Fuse |
Outlet(s) – Total
| 3 |
Outlet Type
| AS x 3 |
Outlet(s) – Battery & Surge Protected
| 3 |
Typical Transfer Time ( ms )
| 4 |
BATTERY
Runtime at Half Load ( min )
| 7 |
Runtime at Full Load ( min )
| 1 |
Typical Recharge Time ( Hours )
| 8 |
Start On Battery
| Yes |
User-replaceable
| No |
Battery Type
| Sealed Lead-acid |
SURGE PROTECTION & FILTERING
Surge Suppression ( Joules )
| 125 |
EMI/RFI Filtration
| Yes |
Phone/Network Protection RJ11/RJ45 (Combo)
| 1-in, 1-out |
MANAGEMENT & COMMUNICATIONS
LED Indicators
| Power On , Line Mode , Battery Mode , Low Battery |
HID Compliant USB Port(s)
| 1 |
Audible Alarms
| Battery Mode , Low Battery , Overload , UPS Fault |
Management Cable ( pcs )
| Power Cord x1 , USB Cable x1 |
Power Management Software
| PowerPanel® Personal |
PHYSICAL
Form Factor
| Tower |
Enclosure Construction
| Plastic |
Color
| Black |
PHYSICAL SIZE – UPS MODULE
Dimensions (WxHxD) (in.)
| 3.937 x 5.512 x 11.811 |
Dimensions (WxHxD) (mm.)
| 100 x 140 x 300 |
Weight (lbs.)
| 12.125 |
Weight (kg.)
| 5.5 |
ENVIRONMENTAL
Operating Temperature (°F)
| 32 ~ 104 |
Operating Temperature (°C)
| 0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % )
| 0 ~ 90 |
Operating Elevation ( feet/meters )
| 0-10,000 feet (0-3,000 meters) |
Storage Temperature (°F)
| -4 ~ 122 |
Storage Temperature (°C)
| -20 ~ 50 |
Storage Relative Humidity (Non-condensing) ( % )
| 0 ~ 90 |
Storage Elevation ( feet/meters )
| 0-10,000 feet (0-3,000 meters) |
Online Thermal Dissipation ( BTU/hr )
| 109 |
Audible Noise at 1.5M from Surface of Unit ( dBA )
| 40 |
CERTIFICATIONS
Certifications
| CE |
RoHS
| Yes |
WARRANTY
Product Warranty Period (Year)
| 3 |
Battery Warranty Period (Year)
| 2 |

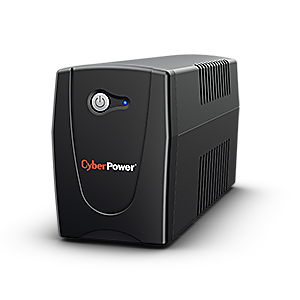

มาเป็นคนแรกที่วิจารณ์ “Cyberpower VALUE1000E 1000VA/550W Warranty 2 Years”
