General
Phase
| Single Phase |
Form Factor
| Desktop |
UPS Topology
| Line-interactive |
Energy Saving Technology
| GreenPower UPS™ Bypass Technology |
Input
Generator Compatibility
| Yes |
Nominal Input Voltage ( Vac )
| 230 ± 10% |
Input Voltage Range ( Vac )
| 165 ~ 280 |
Input Frequency ( Hz )
| 50 ± 5 |
| 60 ± 5 |
Input Frequency Detection
| Auto-sensing |
Rated Input Current ( A )
| 3.64 |
Input Connector Type
| NEMA 5-15P | |
Power Cord Length (ft.)
| 4 |
Power Cord Length (m.)
| 1.2 |
Output
Capacity (VA)
| 800 |
Capacity (Watts)
| 480 |
On Battery Waveform
| Simulated Sine Wave |
On Battery Voltage(s) ( Vac )
| 230 ± 10% |
On Battery Frequency ( Hz )
| 50 ± 1% |
| 60 ± 1% |
Automatic Voltage Regulation (AVR)
| Single Boost, Single Buck |
Overload Protection
| Fuse |
Outlet(s) – Total
| 3 |
Outlet Type
| AS x 3 | |
Outlet(s) – Battery & Surge Protected
| 3 |
Typical Transfer Time ( ms )
| 4 |
Battery
Runtime at 60W ( min )
| 42 |
Runtime at 90W ( min )
| 27 |
Typical Recharge Time ( Hours )
| 8 |
Start On Battery
| Yes |
User-replaceable
| No |
Battery Type
| Sealed Lead-acid |
Surge Protection & Filtering
Surge Suppression ( Joules )
| 150 |
EMI/RFI Filtration
| Yes |
Management & Communications
LCD Panel
| Yes |
LCD Information Display
| Power Status, Battery Status, Load Status |
LED Indicators
| Power On, Line Mode, Battery Mode, Low Battery |
Audible Alarms
| Battery Mode, Low Battery, Overload, UPS Fault |
Physical
Wall Mount Installation
| Yes |
Enclosure Construction
| Plastic |
Color
| Black |
Physical Size – UPS Module
Dimensions (WxHxD) (in.)
| 6.33 x 3.6 x 9.45 |
Dimensions (WxHxD) (mm.)
| 158 x 91.5 x 240 |
Weight (kg.)
| 4.2 |
Shipping Dimensions
Dimensions (WxHxD) (in.)
| 5.6 x 9.0 x 10.9 |
Dimensions (WxHxD) (mm.)
| 142 x 229 x 276 |
Weight (lbs.)
| 9.68 |
Weight (kg.)
| 4.4 |
Environmental
Operating Temperature (°F)
| 32 ~ 104 |
Operating Temperature (°C)
| 0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % )
| 0 ~ 90 |
Operating Elevation ( feet/meters )
| 0-9,843 feet (0-3,000 meters) |
Storage Temperature (°F)
| -4 ~ 122 |
Storage Temperature (°C)
| -20 ~ 50 |
Storage Relative Humidity (Non-condensing) ( % )
| 0 ~ 90 |
Storage Elevation ( feet/meters )
| 0-9,843 feet (0-3,000 meters) |
Online Thermal Dissipation ( BTU/hr )
| 40 |
Audible Noise at 1.5M from Surface of Unit ( dBA )
| 40 |
Certifications
RoHS
| Yes |

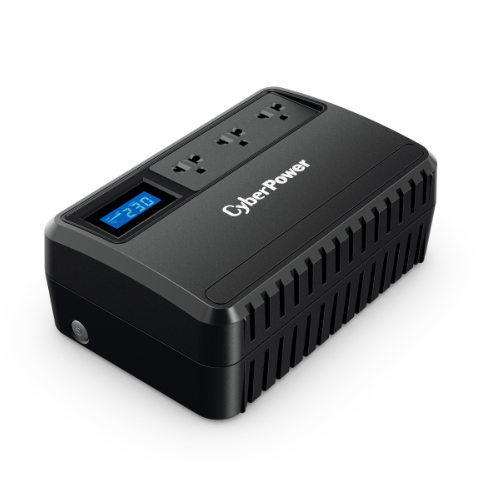

มาเป็นคนแรกที่วิจารณ์ “CyberPower CBP-BU800ELCD เครื่องสำรองไฟ 800VA/480W By Vnix Group”
