Output

• Output power capacity : 260Watts / 420VA
• Max Configurable Power (Watts) : 260Watts / 420VA
• Nominal Output Voltage : 230V
• Output Voltage Distortion : Less than 5% at full load
• Output Frequency (sync to mains) : 47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominal
• Topology : Line Interactive

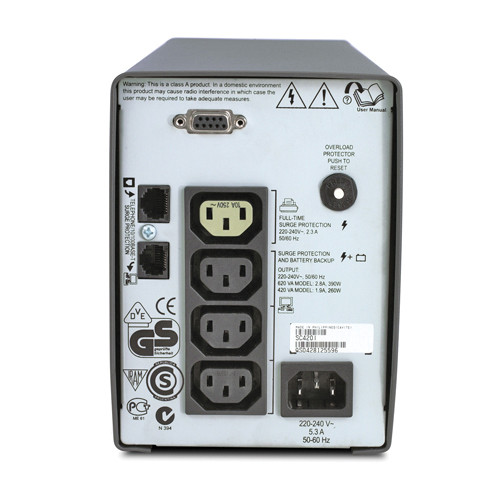

• Output Connections
  (2) IEC Jumpers (Battery Backup)
  (3) IEC 320 C13 (Battery Backup)
  (1) IEC 320 C13 (selector_surgetitle)
• Transfer Time : 2ms typical

Input

• Nominal Input Voltage : 230V
• Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections : IEC-320 C14
• Input voltage range for main operations : 195 – 265V

Batteries & Runtime

• Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time : 3hour(s)
• Replacement Battery : RBC2
• Expected Battery Life (years) : 3 – 5
• RBC Quantity : 1
• Runtime : View Runtime Graph       View Runtime Chart
• Efficiency : View Efficiency Graph

Communications & Management

• Interface Port(s) : DB-9 RS-232
• Control panel : LED status display with On Line : On Battery : Replace Battery and Overload indicators
• Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Emergency Power Off (EPO) : N/A

Surge Protection and Filtering

• Surge energy rating : 320Joules
• Data Line Protection : RJ-45 Modem/Fax/DSL/10-100 Base-T protection
• Filtering : Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height : 168mm , 16.8CM
• Maximum Width : 119mm , 11.9CM
• Maximum Depth : 368mm , 36.8CM
• Net Weight : 9.09KG
• Shipping weight : 10.23KG
• Shipping Height : 318mm , 31.8CM
• Shipping Width : 262mm , 26.2CM
• Shipping Depth : 508mm , 50.8CM
• Color : Grey
• Units per Pallet : 12.0

Environmental

• Operating Temperature : 0 – 40 °C
• Operating Relative Humidity : 0 – 95 %
• Operating Elevation : 0-3000meters
• Storage Temperature : -15 – 45 °C
• Storage Relative Humidity : 0 – 95 %
• Storage Elevation : 0-15000meters
• Audible noise at 1 meter from surface of unit :45.0dBA
• Online thermal dissipation : 50.0BTU/hr

Conformance

• Approvals : CE, GOST, VCCI, VDE
• Standard warranty : 2 years repair or replace

Sustainable Offer Status

• RoHS : Compliant
• REACH : REACH: Contains No SVHCs
• PEP : Available in Documentation tab
• EOLI : Available in Documentation tab
• Other Environmental Compliance : China RoHS
