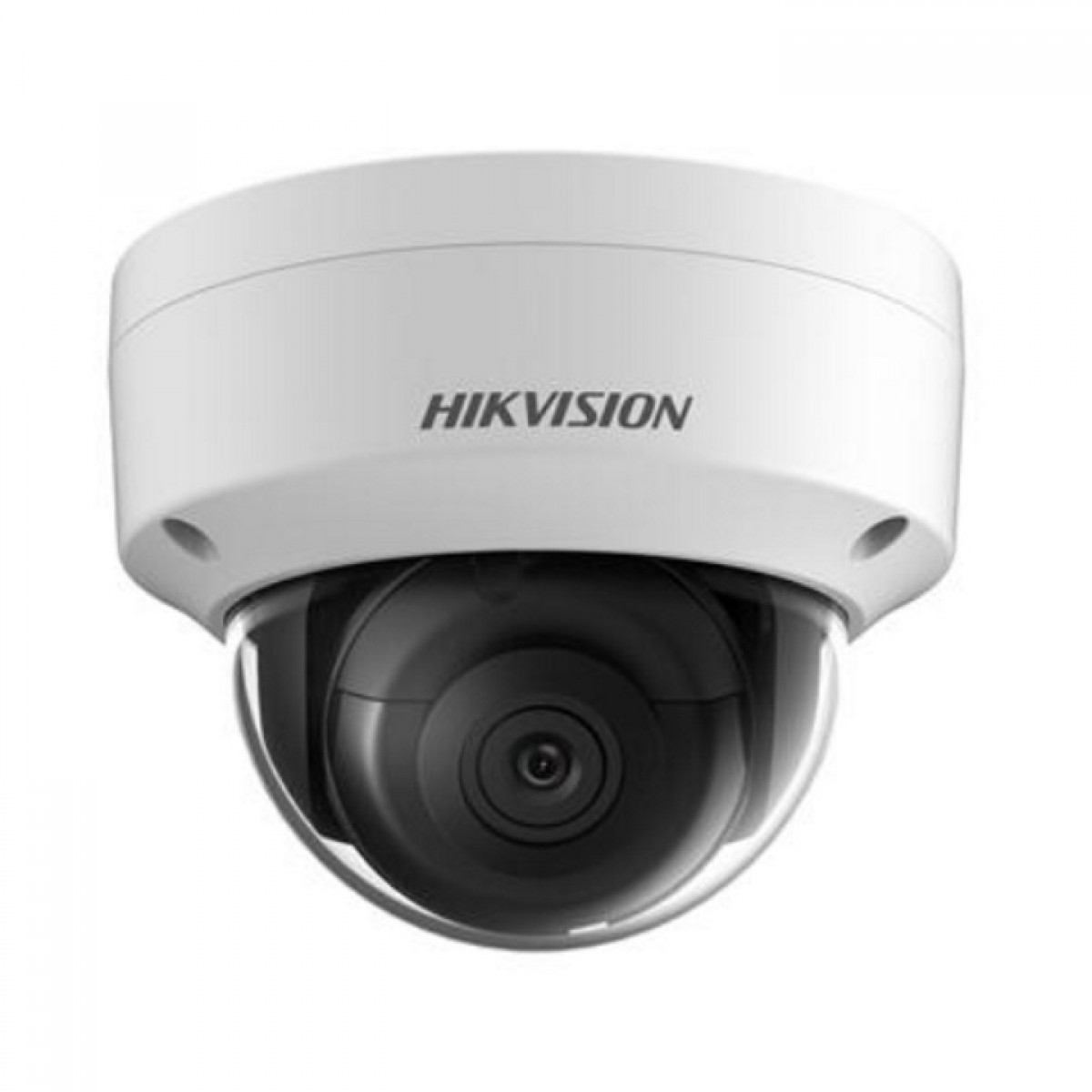

3 MP Ultra-Low Light Network Dome Camera
1/2.8″ Progressive Scan CMOS; H.265+/H.265/H.264+/H.264/MJPEG; Powered by Darkfighter technology,Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR; 25fps/30fps(2048×1536, 1920×1080); 2.8/4/6mm lens optional; 120dB WDR; VCA functions; 3 streams; 3D DNR; BLC; ICR; EXIR 2.0, up to 30m; All-metal housing, IP67, IK10; DC12V&PoE; Built-in micro SD/SDHC/SDXC slot; HIK-Connect cloud service,4 behavior analysis and face detection Warranty 3 years
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8″ Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR | |
| Shutter time: | 1/3 s to 1/100,000 s | |
| Slow shutter: | Support | |
| Lens: | 2.8 mm, horizontal field of view: 98° 4 mm, horizontal field of view: 78.7° 6mm, horizontal field of view: 48° 8 mm, horizontal field of view: 37° 12 mm, horizontal field of view: 23° |
|
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
| Video bit rate: | 32Kbps~16Mbps | |
| Triple Streams: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 2048×1536 | |
| Frame Rate: | 50Hz: 25fps (2048 × 1536, 1920 × 1080, 1280×720) 60Hz: 30fps (2048 × 1536, 1920 × 1080, 1280×720) |
|
| Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
| Third Stream: | 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240) |
|
| Image Enhancement: | BLC/3D DNR | |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
| ROI: | Support 1 fixed region for main stream and sub stream separately | |
| Day/Night Switch: | Auto/Scheduled/Alarm Triggered (-S) | |
| Network | ||
|---|---|---|
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 | |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
|
| System Compatibility: | ONVIF (Profile S, Profile G), ISAPI | |
| Interface | ||
|---|---|---|
| Audio: | With –S model: 1 input (line in), 1 output | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
| Alarm: | 1 alarm input, 1 alarm output | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Smart Feature-set | ||
|---|---|---|
| Behavior Analysis: | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection | |
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials | |
| Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. | |
| Exception Detections: | Scene change detection | |
| Recognition: | Face Detection | |
| General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) | |
| Power Consumption: | 12 VDC ± 25%, 5.5 W PoE(802.3af, class 3), 7 W |
|
| Impact Protection: | IK10 | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 30m | |
| Dimensions: | Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″) Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″) |
|
| Weight: | Camera: 500 g (1.1 lb.) | |
