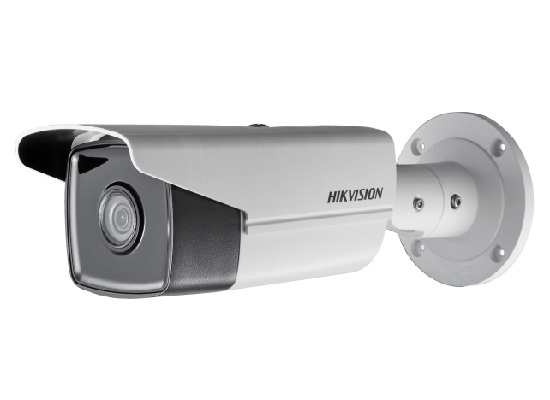

2 MP IR Fixed Bullet Network Camera
1/2.8″ Progressive Scan CMOS; H.265+/H.265/H.264+/H.264/MJPEG; Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR; 25fps/30fps(1920×1080); VCA functions; 3 streams; 3D DNR; ICR; EXIR; up to 50m, DC12V&PoE; 120db WDR,IP67,Built-in micro SD/SDHC/SDXC slot; HIK-Connect cloud service Warranty 3 years
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8″ Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR | |
| Shutter time: | 1/3 s to 1/100,000 s | |
| Slow shutter: | Support | |
| Lens: | 2.8 mm: horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135° 4 mm: horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102° 6 mm: horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62° 8 mm: horizontal FOV: 43°, vertical FOV: 23°, diagonal FOV: 50° |
|
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
| Video bit rate: | 256Kbps~16Mbps | |
| Triple Streams: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 1920 x 1080 | |
| Frame Rate: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720) |
|
| Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
| Third Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240) |
|
| Image Enhancement: | BLC/3D DNR | |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
| Target Cropping: | No | |
| ROI: | 1 fixed region for main stream and sub-stream | |
| Day/Night Switch: | Day/Night/Auto/Schedule | |
| Network | ||
|---|---|---|
| Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
| Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
|
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI | |
| Interface | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Reset Button: | Yes | |
| Smart Feature-set | ||
|---|---|---|
| Behavior Analysis: | Line crossing detection, intrusion detection | |
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| Recognition: | Face Detection | |
| General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) | |
| Power Consumption: | -I5:12 VDC, 0.6A, max. 7.5W PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 9.5W -I8:12 VDC, 0.95A, max. 11.5W PoE (802.3af, 37V to 57V), 0.35A to 0.1A, max. 12.5W |
|
| Weather Proof: | IP67 | |
| IR Range: | -I5: up to 50 m; -I8: up to 80 m | |
| Dimensions: | Camera: Φ 105 × 299.7 mm (Φ 4.1″ × 11.8″) Package: 386 × 156 × 155 mm (15.2″ × 6.14″ × 6.1″) |
|
| Weight: | Camera: Approx. 1180 g (2.6 lb.) With Package: Approx. 1700 g (3.7 lb.) |
|
