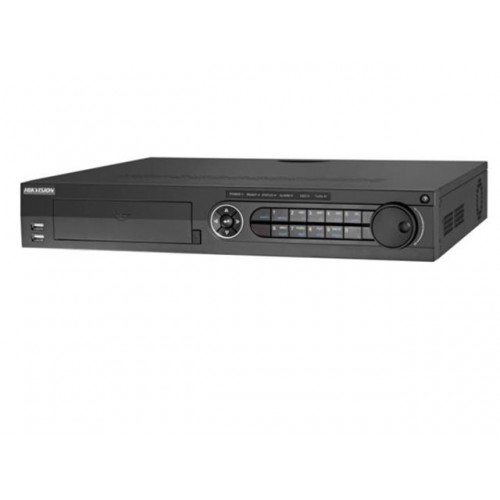

24 Turbo HD/Analog self-adaptive interfaces input, 24-ch video&4-ch audio input, 4 SATA interfaces, 1920×1080P: 12 fps/ch, 1280×720P:25(P)/30(N) fps/ch, alarm I/O: 16/4, 1.5U 19″ case Warranty 3 years
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 4-ch | |
| Video Compression: | H.264 | |
| Analog and HD-TVI video input: | 24-ch, BNC interface (1.0Vp-p, 75 Ω) | |
| Supported camera types: | 720p/25Hz, 720p/30Hz, 720p/50Hz, 720p/60Hz, 1080p/25Hz, 1080p/30Hz, CVBS | |
| IP Video Input: | 8-ch (up to 32-ch) Up to 2MP resolution | |
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) | |
| Two-way Audio: | 1-ch RCA(2.0Vp-p, 1kΩ) | |
| Video/Audio Output | ||
|---|---|---|
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
| Recording resolution: | 1080p/720p/VGA/WD1/4CIF/CIF | |
| Frame Rate: | Main stream: 1080p@12fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF/QCIF/QVGA@25fps (P)/30fps (N) |
|
| Video Bit Rate: | 32 Kbps-6 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Audio Bit Rate: | 64kbps | |
| Dual Stream: | Support | |
| Playback Resolution: | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF | |
| Synchronous Playback: | 24-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP?, HTTPS |
|
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 4 SATA interfaces for 4 HDDs; 1 eSATA interface | |
| Capacity: | Up to 6 TB capacity for each disk | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface | |
| USB Interface: | 3 USB2.0 interfaces | |
| Serial Interface: | 1RS-485 interface, 1 RS-232 interface, 1 RS-485 keyboard interface | |
| Alarm Input: | 16-ch | |
| Alarm Output: | 4-ch | |
| General | ||
|---|---|---|
| Power Supply: | 100 ~ 240VAC, 47 ~ 63HZ | |
| Consumption: | ≤ 55W | |
| Working Temperature: | -10 oC ~+55 oC (14 oF ~ 131 oF) | |
| Working Humidity: | 10% ~ 90% | |
| Chassis: | 19-inch rack-mounted 1.5U chassis | |
| Dimensions: | 445 × 390 × 70 mm (17.5 × 15.3 × 2.7 inch) | |
| Weight: | ≤5Kg (11.0lb) | |
