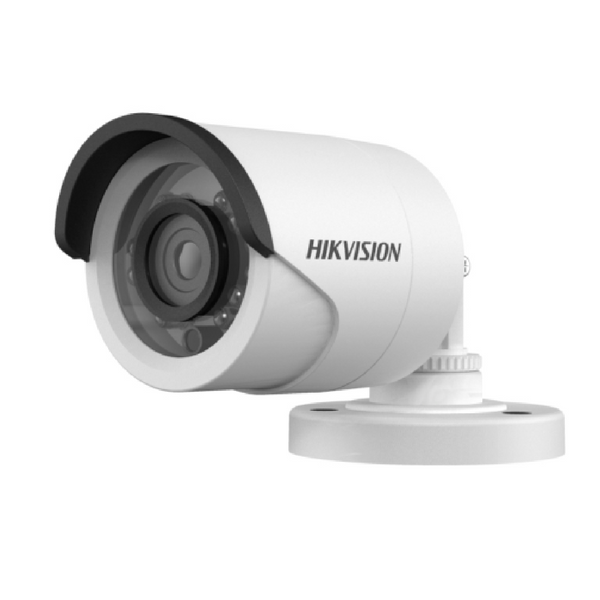

HD720p,1MP CMOS Sensor, 24 pcs IR LEDs, 20m IR, Outdoor IR Bullet, ICR, 0.01 Lux/F1.2, 12 VDC, Smart IR, IP66, Wide operating temperature range (-40°~60°), 6mm Lens Warranty 3 years
| Camera | ||
|---|---|---|
| Image Sensor: | 1MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1296(H)x732(V) | |
| Min. Illumination: | 0.1 Lux @(F1.2,AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 3.6mm (2.8mm, 6mm optional), Angle of View: 70.9°(3.6mm), 92°(2.8mm), 56.7°(6mm) | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0 – 360°, Tilt: 0 – 180°, Rotation: 0 – 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | 720p@25fps/720p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| S/N Ratio: | More than 62 dB | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±15% | |
| Power Consumption: | Max. 4W | |
| Weather Proof: | IP66 | |
| IR Range: | Up to 20m | |
| Dimension: | Φ70×149.5 mm (Φ2.76” ×5.89”) | |
| Weight: | 400 g | |
